TG thermostatic emergency 90-110 °C

Catalogue number: 179P2113

In Stock total > 5 ks

20,13 €

16,78 € without VAT

-
+
producer TG

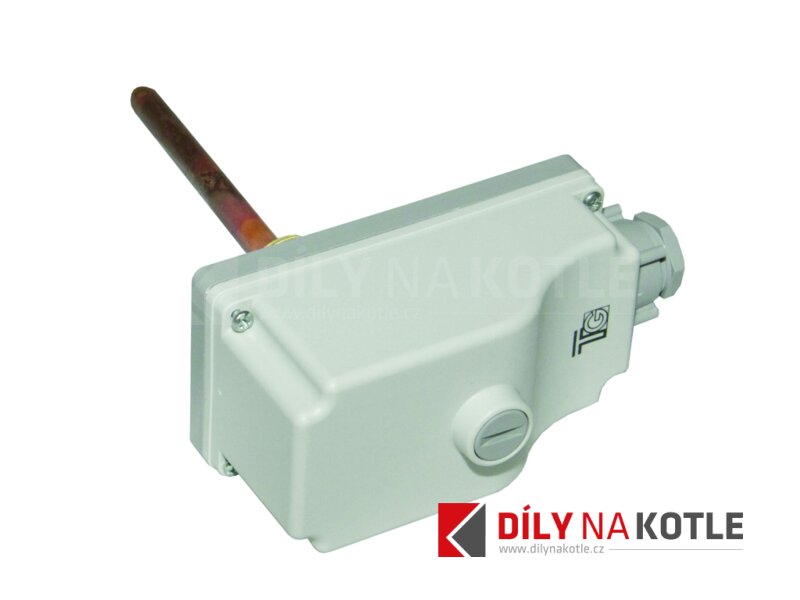

TG thermostatic emergency 90-110 °C

  • The thermostat is designed as a safety element for the heating system, so that the temperature does not cause subsequent damage to the heating system.
  • Setting range: 90 - 110 °C
  • The thermostat is equipped with a well with an external 1/2 "thread
  • Microswitch with AG CDO gold strap
  • Voltage according to EN 60730-1: 16 (4) A 250V ~ 50Hz
  • Switching difference: 6 + -2K
  • Temperature change: 1 ° K / min.
  • Degree of protection: IP43
  • Maximum thermostat temperature: 80 °C
  • Maximum sensor temperature in the well: 130 °C
  • Output: NC contact
  • Well dimensions: 7x8x100mm
  • Color: gray
  • Application example: PUMP switching; BOILERS
