Indirect heating water tank OKC 200 NTR/HP

Description Technický rozkres

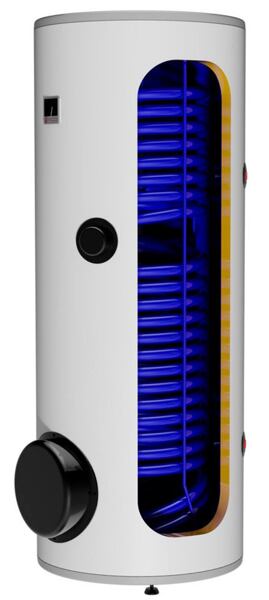

Indirectly heated stationary storage tank with a large-area heat exchanger, suitable for connecting to heat pumps and other low-temperature sources. With one large exchanger for connecting the heating source. In the lower part of the heater there is an inspection flange hole for cleaning the inside of the container. Working pressure in the vessel and in the exchanger 1 MPa.
Technical parameters:
height: 1355 mm
width: 584 mm
depth: 584 mm
volume: 208 l
weight without water: 102 kg

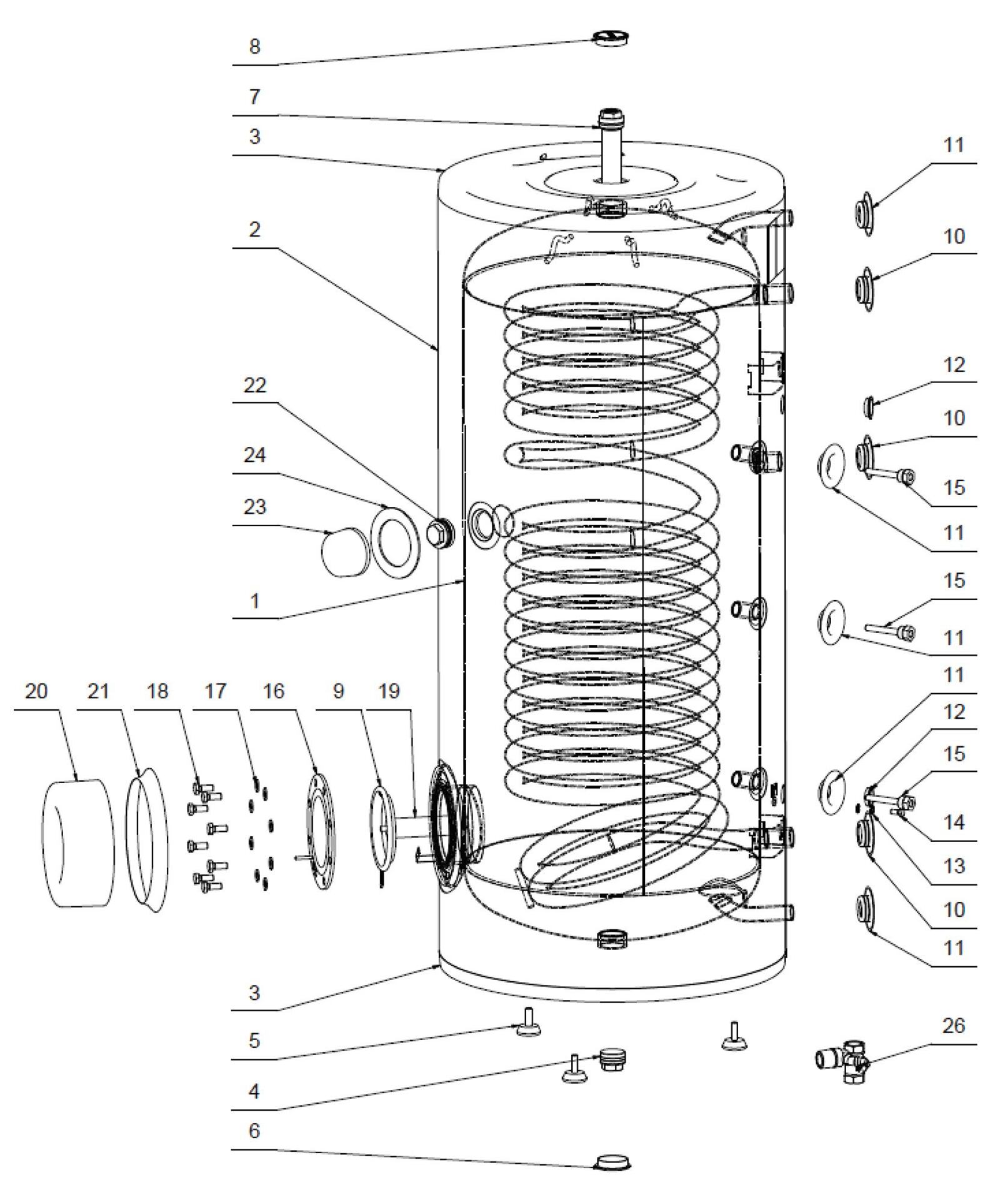

1 - 1107914101 Ohřívač vody OKC 200 NTR/HP, 5 - 6309004 Šroub rektifikační, 7 - 6199219 Anoda 33 x 450 - 5/4“, 15 - 6422542 Jímka, 16 - 2000232 Víko příruby, 19 - 6199202 Anoda 33 x 200/M8, 20 - 6321998 Kryt elektroinstalace, 22 - 6309254 Zátka, 26 - 6422571 Pojistný ventil
