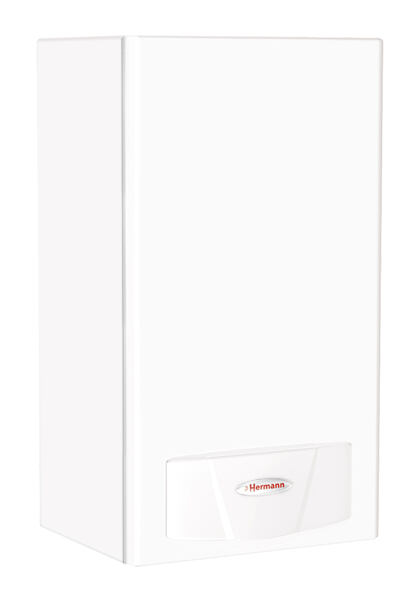

HABITAT SE

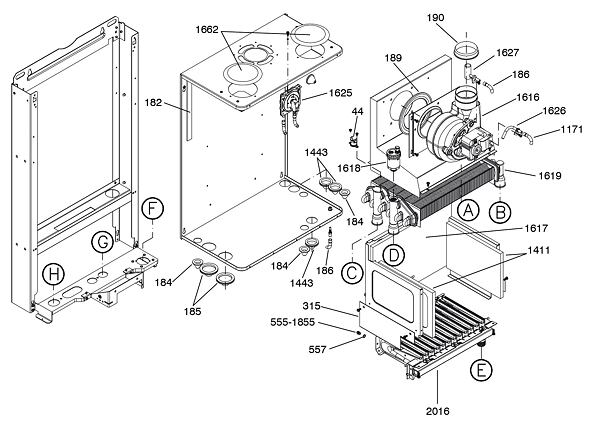

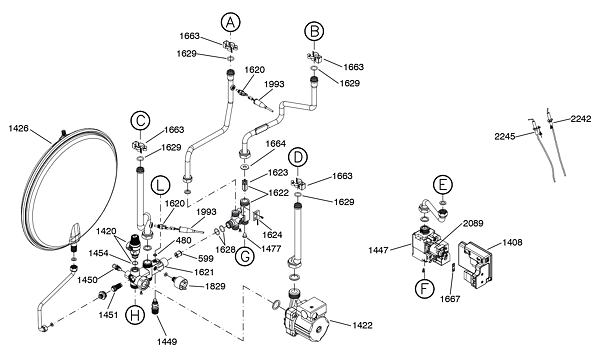

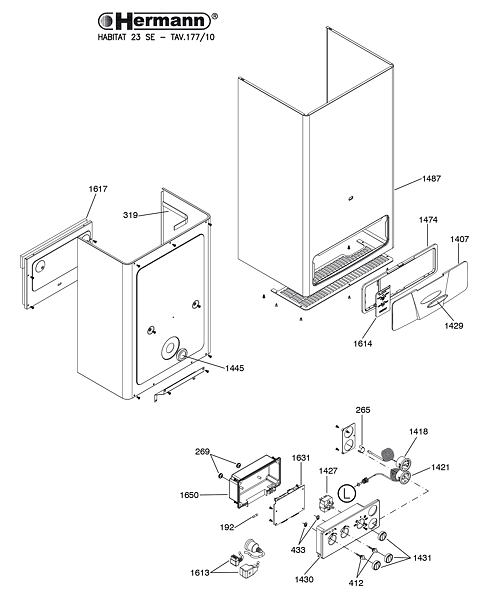

Description Technický rozkres

Technické parametry:
výška: 700 mm
šířka: 400 mm
hloubka: 300 mm

Kombinovaný nástěnný kotel, který je určen k vytápění a přípravě teplé užitkové vody. K základním technickým charakteristikám kotle patří: deska s mikroprocesorem kontrolující vstupy, výstupy a řízení hlášení závad, elektronická modulace plamene topení a ohřevu TUV, elektronické zapalování s kontrolou a ionizací plamene, automatické pomalé zapalování, stabilizátor tlaku směšovače plynu, max. výkon vytápění s regulací, min. výkon vytápění s regulací, potenciometr pro navolení teploty vody v topení, vypínač Off-reset a odblokování hlášení závad.

Sort by

bestselling name least expensive most expensive

View

cat.number: 149100103 in stock

Pump GRUNDFOS UPS - 5m - 1422

314,06 € with VAT

Pump GRUNDFOS UPS - 5m - 1422

cat.number: HE052002948 in stock

Electronic board HABITAT - 1631

199,72 € with VAT

Electronic board HABITAT 1631

cat.number: HE055004010 in stock

HERMANN Ignition electrode - 2242

27,88 € with VAT

HERMANN Ignition electrode - 2242

cat.number: 040001199 in stock

HERMANN Shaft for potentiometer 412

3,42 € with VAT

HERMANN Shaft for potentiometer 412

cat.number: HE057002957 in stock

HERMANN TUV microswitch HERMANN - 1624

41,23 € with VAT

Microswitch DHW HERMANN - 1624

cat.number: HE004002563 in stock

Expansion vessel 8 liters - 1426

121,14 € with VAT

HERMANN Expansion tank 8 liters - 1426

cat.number: HE141017828 in stock

HERMANN O-ring 17.8 - 1629

4,63 € with VAT

HERMANN O-ring 17.8 - 1629

cat.number: HE038002959 in stock

Pipe clamp - 1663

3,99 € with VAT

HERMANN Pipe fixing clamp - 1663

cat.number: HE032000117 in stock

Sealing under ventilator HERMANN - 189

9,66 € with VAT

HERMANN Fan gasket - 189

cat.number: HE152102420 in stock

HERMANN Teflon gasket - 1664

2,42 € with VAT

Teflon gasket - 1664

cat.number: HE013002578 in stock

Refill valve - 1449

12,94 € with VAT

Inlet valve 1449

cat.number: HE155600001 in stock

Safety valve 3bar - 1420

14,60 € with VAT

HERMANN Safety valve 3bar - 1420

cat.number: HE052002490 on order

HE052002490 Zapalovací automatika - 1408

HERMANN ignition automatics - 1408

150,51 € with VAT

HERMANN automatika zapalovací 1408

cat.number: HE401000016 on order

Coils to the valve SIT 845-2089

51,22 € with VAT

HERMANN coils for valve SIT 845 - 2089

cat.number: HE140002056 on order

O-ring 14 - 1454

2,15 € with VAT

HERMANN o-kroužek 14 - 1454

cat.number: HE140003056 on order

O - ring - 1628

1,21 € with VAT

HERMANN o-kroužek 1628

cat.number: HE049003163 on order

HERMANN Pressure switch - 1829

28,63 € with VAT

HERMANN Pressure switch - 1829

cat.number: HE135041110 on order

Seal 7x11 - 480

6,06 € with VAT

Těsnění 7×11 - 480

cat.number: HE032000114 on order

Seal above ventilator

6,65 € with VAT

Těsnění nad ventilátor - 190

cat.number: HE022002574 on order

Valve SIT 845 SIGMA - 1447

132,90 € with VAT

HERMANN ventil SIT 845 SIGMA - 1447

cat.number: HE011002579 on order

Dump valve - 1450

5,09 € with VAT

HERMANN ventil vypouštěcí - 1450

cat.number: HE050003341 on order

Wire to NTC sensor - 1993

11,02 € with VAT

HERMANN Vodič k NTC čidlu - 1993
