Indirect heating tank water heater OKC 80 NTR/Z

Description Technický rozkres

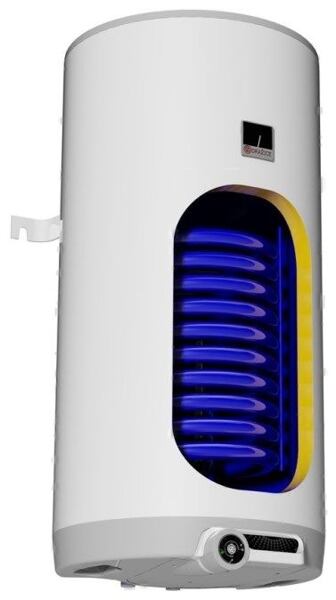

Indirect enamelled heater for hanging on the wall with a volume of 76 liters. It has no electric heating. The heater is connected to an external hot water source with a maximum temperature of 110°C and a pressure of 1 MPa. Heating is provided by a powerful spiral heat exchanger. The heater is equipped with hot water temperature regulation (thermostat for controlling the three-way valve or circulation pump) for voltage 230 V/50 Hz, a safety valve and an outlet for circulation.
Technical parameters:
height: 757 mm
width: 524 mm
depth: 524 mm
volume: 76 l
weight without water: 39 kg

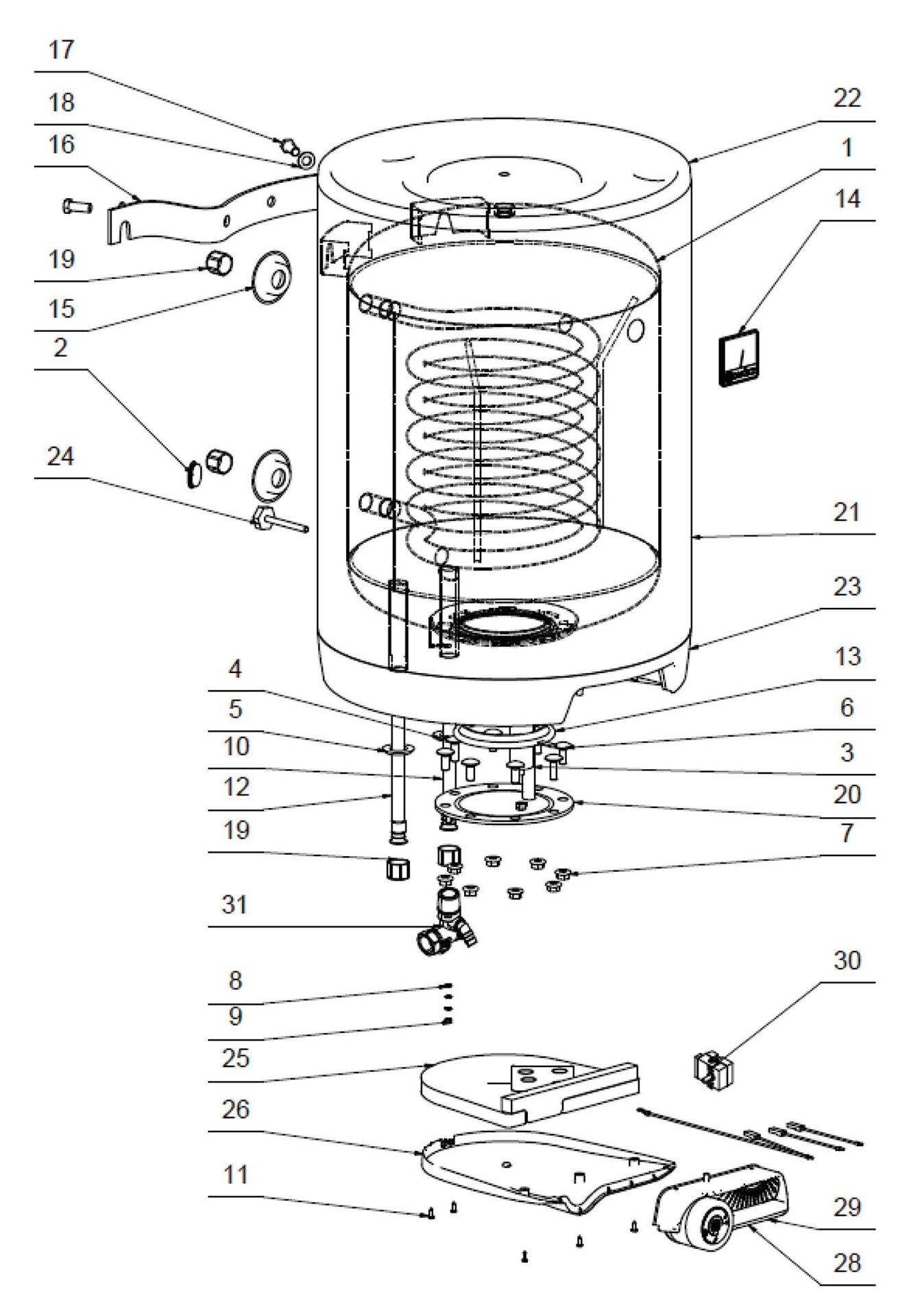

1 - 1101508101 Ohřívač vody OKC 80 NTR/Z, 3 - 6199202 Anoda 33 x 200/M8, 10 - 6321895 Napouštěcí vložka, 12 - 6323911 Trubka plastová PEX 715 mm, 13 - 6273127 Kroužek těsnící, 14 - 6388315 Indikátor teploty, 16 - 102000702 Sada závěs vysoký 450x70, 20 - 2000254 Víko příruby, 24 - 6309253 Šroub rektifikační, 25 - 6283124 Zátka izolační, 26 - 6321984 Kryt elektroinstalace, 28 - 3322000ND Sestava ovladače komplet, 29 - 6422070 Sestava ovladače plast, 30 - 6405617 Termostat, 31 - 6422571 Pojistný ventil
