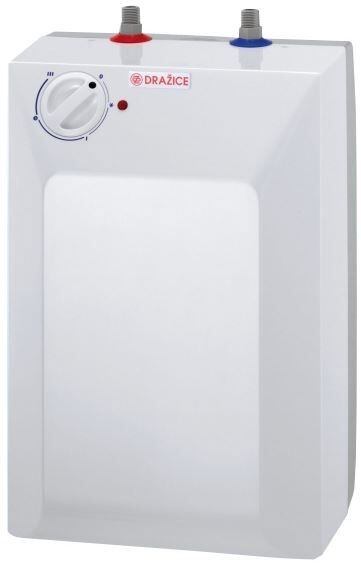

Electric water heater without pressure BTO 5 IN

Description Technický rozkres
Electric tank heater with a plastic container and an interesting design, it reliably supplies hot water to one collection point (shower, sink, sink). Only one sampling point can be connected in a non-pressurized system. The heater is installed under the sink. A non-pressurized battery must be used for use. The power of the heater is 2 kW.
Technical parameters:
height: 390 mm
width: 256 mm
depth: 213 mm
volume: 5 l
weight without water: 3.5 kg

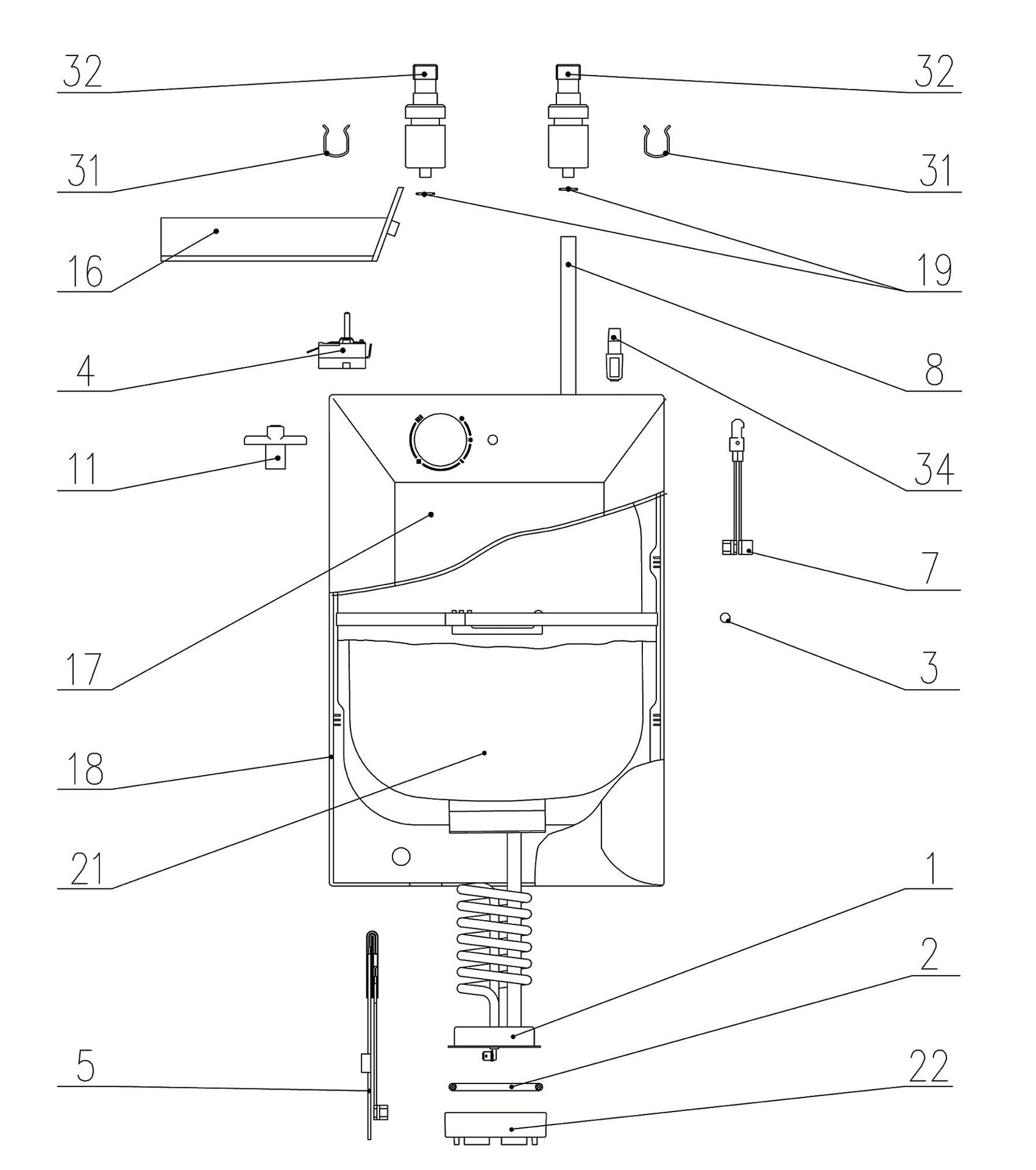

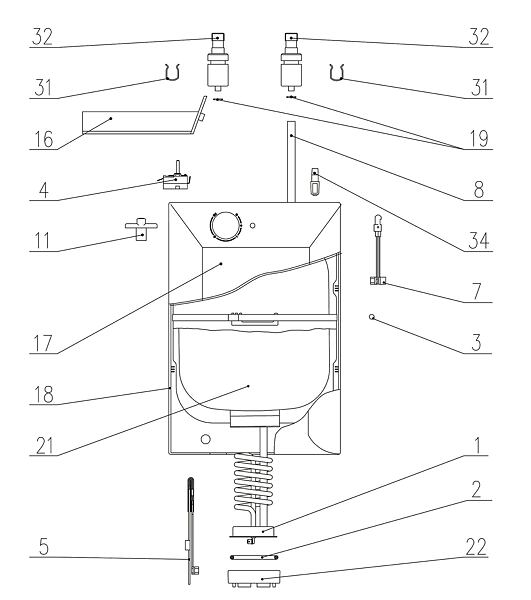

1 - 316519 Topné těleso 2000W, 2 - 487155 Těsnění, 3 - 482028 Čočka prosvětlená červená, 4 - 487156 Termostat, 5 - 487165 Pojistka tavná, 7 - 580409 Světlo signalizační, 8 - 487167 Trubka přívodní, 11 - 487227 Knoflík termostatu s pružinou, 16 - 487206 Držák termostatu, 17 - 308269 Kryt - přední, 18 - 307530 Kryt - zadní, 19 - 487160 Těsnění, 21 - 307525 Kotlík, 22 - 487147 Matice, 31 - 487162 Závlačka bezpečnostní, 32 - 580465 Spojka G 3/8, 35 - 487204 Difuzér
