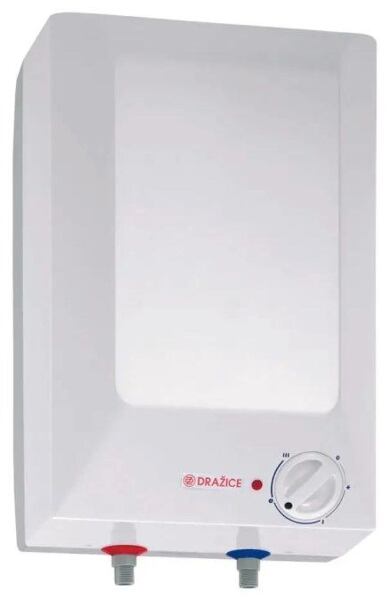

Electric water heater without pressure BTO 10 UP

Popis Technický rozkres
Electric tank heater with a plastic container and an interesting design, it reliably supplies hot water to one collection point (shower, sink, sink). Only one sampling point can be connected in a non-pressurized system. The heater is installed above the sink. The power of the heater is 2 kW. Connection voltage 1-PE-N/AC 230 V/50 Hz.
Technical parameters:
height: 500 mm
width: 350 mm
depth: 265 mm
volume: 10 l
weight without water: 4 kg

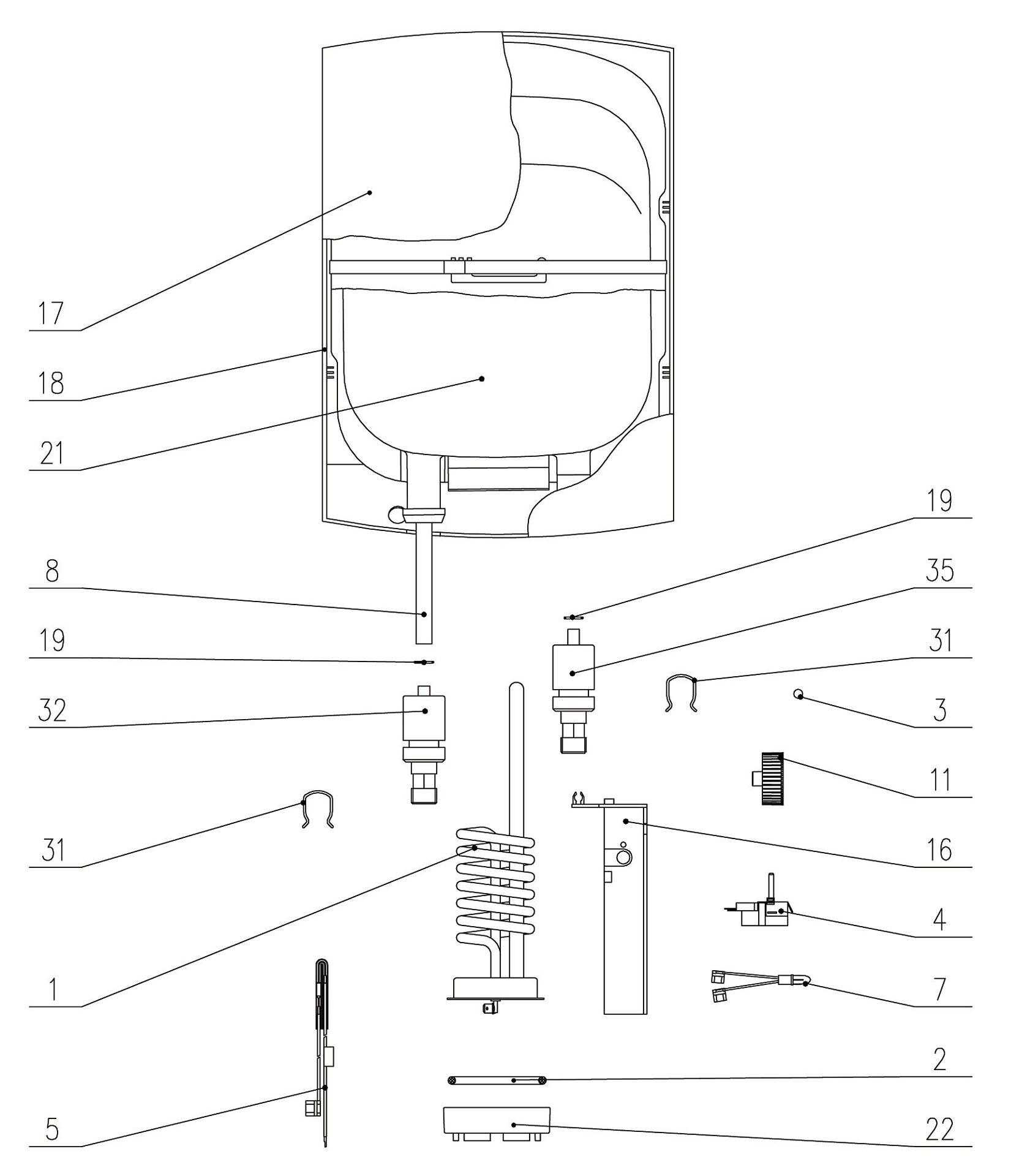

1 - 316519 Topné těleso 2000W, 2 - 487155 Těsnění, 3 - 482028 Čočka prosvětlená červená, 4 - 487156 Termostat, 5 - 487157 Pojistka tavná, 7 - 580427 Světlo signalizační, 8 - 580411 Trubka odtoková L=338mm, 11 - 580421 Knoflík termostatu s pružinou, 16 - 580429 Držák termostatu, 17 - 757180 Kryt - přední, 18 - 300598 Kryt - zadní, 19 - 487160 Těsnění, 21 - 304966 Kotlík, 22 - 487147 Matice, 31 - 487162 Závlačka bezpečnostní, 32 - 580462 Spojka G 1/2, 35 - 580463 Spojka G 1/2 s difuzérem
