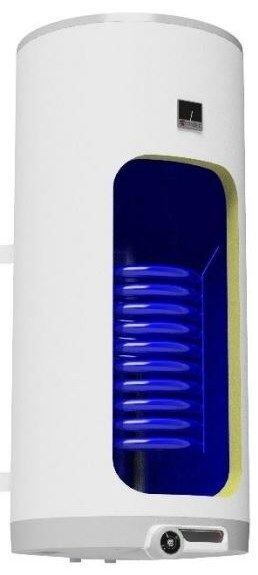

Combined tank water heater OKC 200/1m²

Description Technický rozkres
Combined vertical tank heater with one exchanger, suitable for different heat sources. The ceramic heating element significantly extends the life of the heater. The anti-corrosion layer is not subject to pitting in hard and chlorinated water environments. High-quality Covestro insulation for low heat loss and minimal operating costs. In the version with a 1 m² heat exchanger, the stock is suitable for boilers with different fuels and condensing boilers.
Technical parameters:
height: 1300 mm
width: 584 mm
depth: 584 mm
volume: 195 l
weight without water: 84 kg

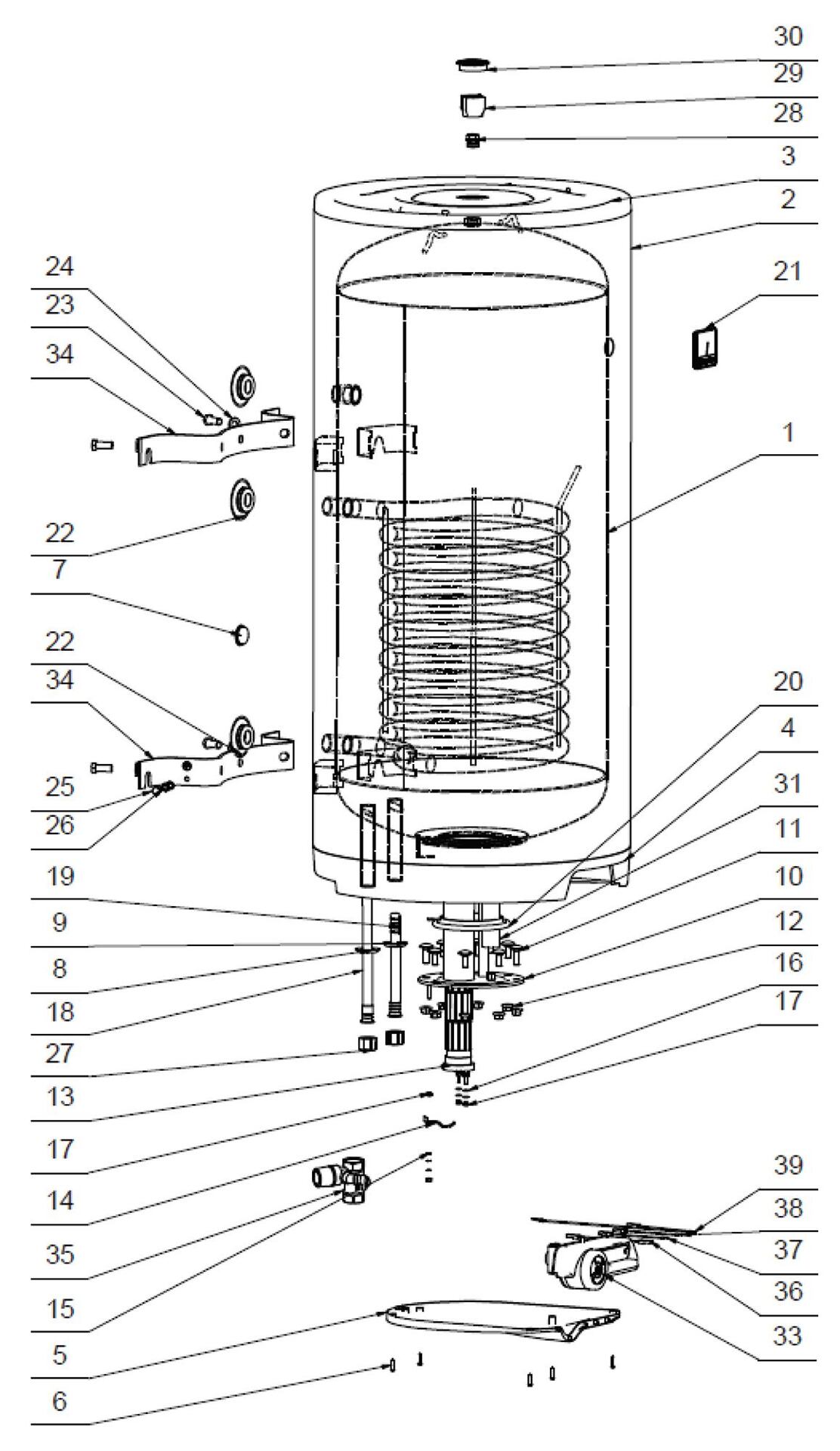

1 - 1107209101 Ohřívač vody OKC 200/1m2, 3 - 6322119 Víko pláště horní, 4 - 6322120 Víko pláště spodní, 5 - 6322121 Kryt elektroinstalace, 6 - 6309811 Šroub do plechu pozink, 10 - 2000250 Víko příruby, 13 - 3342001ND Topné těleso, 18 - 6323916 Trubka plastová PEX 1230 mm, 19 - 6321895 Napouštěcí vložka, 20 - 6273127 Kroužek těsnící, 21 - 6388315 Indikátor teploty, 31 - 6199203 Anoda 33 x 370/M8, 33 - 3322004ND Sestava ovladače komplet, 34 - 102000702 Sada závěs vysoký 450x70, 35 - 6422571 Pojistný ventil, 36-39 - 5341001 Sada vodičů
