IMIT thermostat 0-90 ° C TC2

Catalogue number: 17542470

In Stock total > 5 ks

16,42 €

13,69 € without VAT

producer IMIT

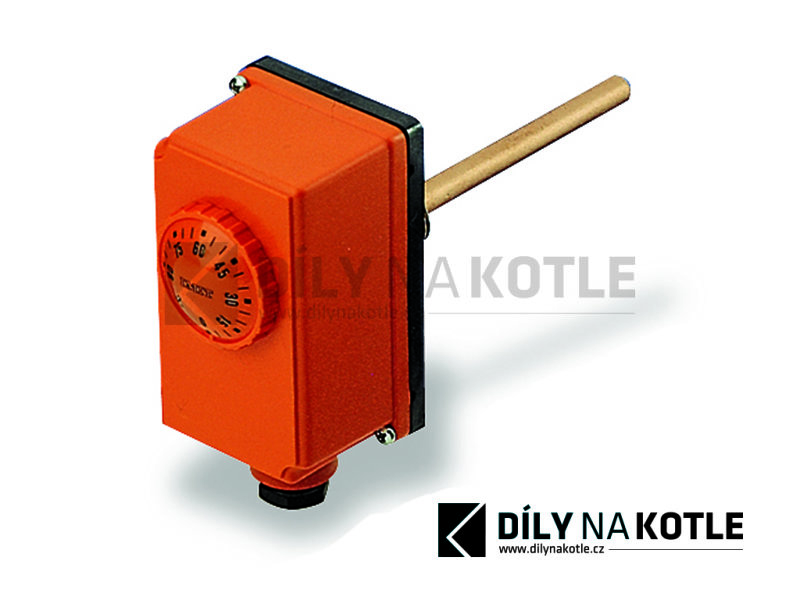

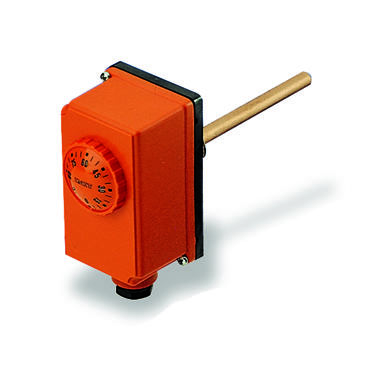

Well thermostat IMIT TC2

  • The well thermostat with a scale in the range from 0 - 90 ° C can be installed in a well with an internal 1/2 "thread
  • The thermostat is equipped with a well with an external 1/2 "thread
  • Easy thermostat operation thanks to the large hand dial
  • Microswitch with AG CDO gold strap
  • Voltage according to EN 60730-1: 10 (2,5) A 250V ~ 50Hz
  • Switching difference: 4 + -1K
  • Temperature change: 1 ° K / min.
  • Degree of protection: IP40
  • Maximum thermostat temperature: 80 ° C
  • Maximum sensor temperature in the well: 130 ° C
  • Measuring range: 0-90 ° C
  • Output: make or break contact
  • Well dimensions: 7x8x100mm
  • Color: orange
  • Application example: PUMP switching; BOILERS

Need advice?

If you do not know how to choose, or you need to verify the compatibility of the part with your boiler, contact us.
