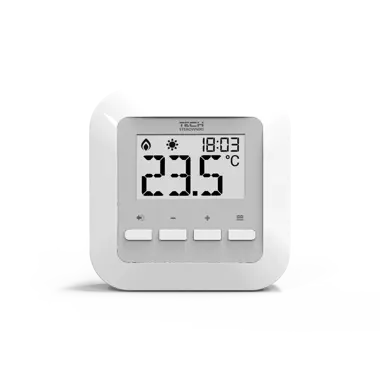

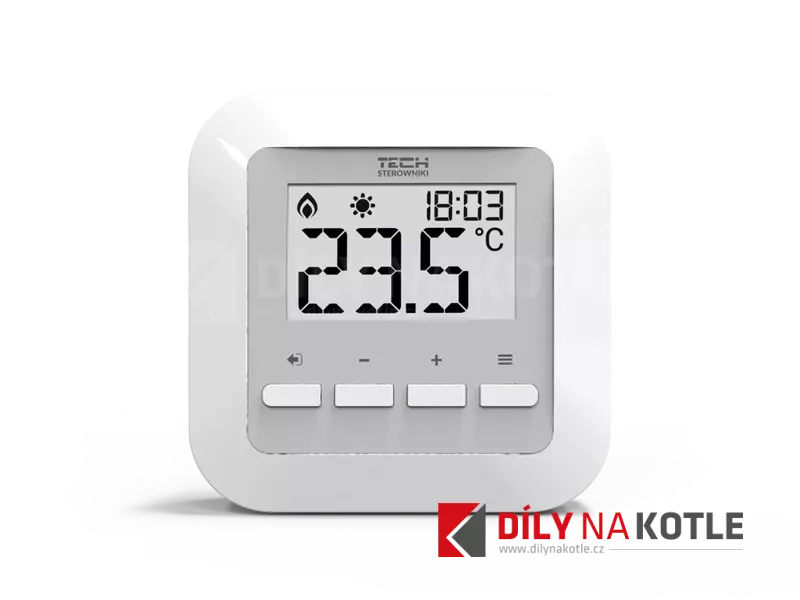

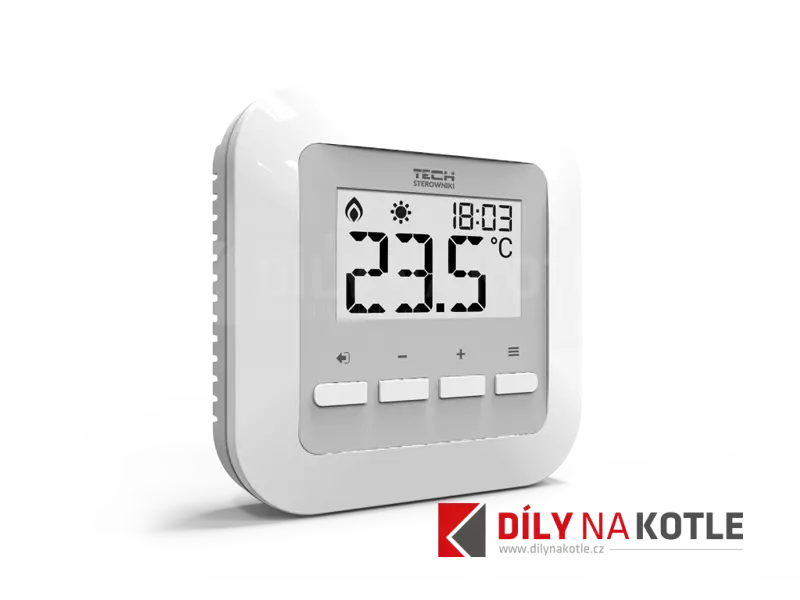

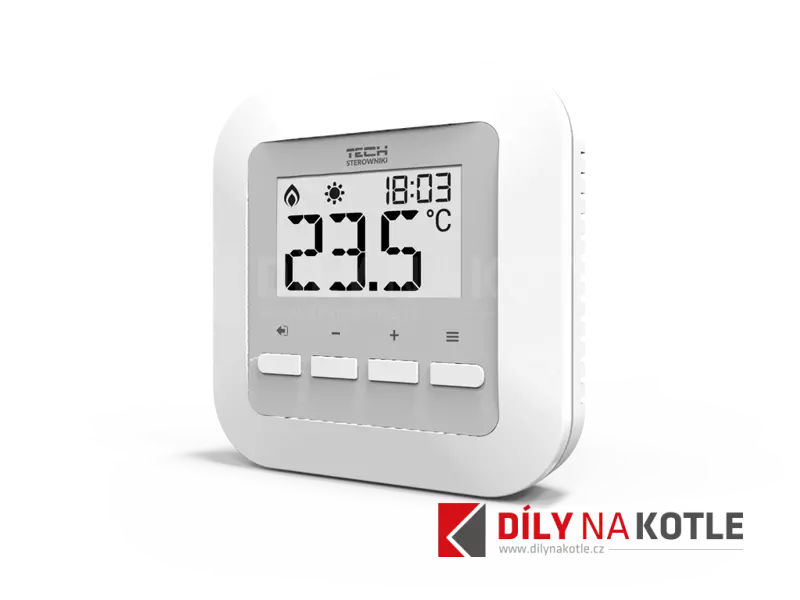

EU-295 v3 Wired two-position room thermostat

EU-295 v3 Wired two-position room thermostat

The room thermostat is available in two variants: wired (EU-295v3) and wireless (EU-295v2).
It is a device that is extremely easy to use and at the same time aesthetic.

You control the room and floor temperature with an accuracy of up to 0.1°C

The residential thermostat CS-295 allows you to set the room temperature with an accuracy of up to 0.1 ° C. It has a built-in temperature sensor through which we can check the room temperature.
A floor temperature sensor can be connected to the device.

Two working modes

The apartment thermostat EU-295 is a device that can work in one of two operating modes:

• Day / night mode - operation at two temperature values: day and night (comfort and damping). The moment of transition from one mode to another is determined by the user.
• Manual operation - individual settings are determined by the user directly from the level of the main display using the + and - buttons. Changes can be made at any time.

Modern design and aesthetic design

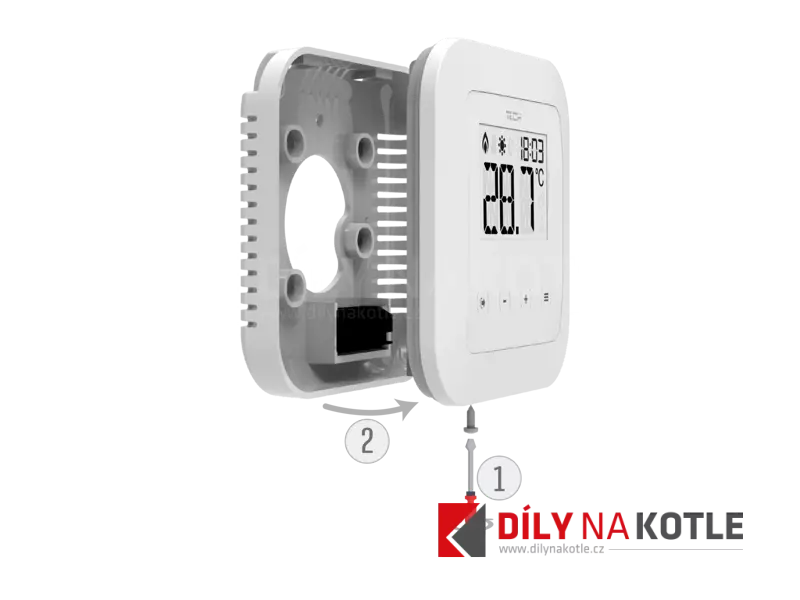

The CS-295 regulator is a relatively small device, exactly: 95 x 95 x 25mm. At first glance, it stands out with its minimalist design. The regulator is white in design and has a readable, clear, large display with temporary backlighting. Active devices display the current room temperature, time and operating mode. The connection of the floor temperature sensor also enables the regulation of the floor temperature. Large numbers on the device display are complemented by aesthetic and intuitive icons. The apartment thermostat is intended for wall mounting and is ideal for rooms where the owner wants to discreetly highlight the care of the temperature.

Simplicity and intuitive operation

Changes to the thermostat parameters can be made using four small touch buttons: plus, minus, exit and menu. Thanks to this, the device is extremely simple to operate and functional enough that all the most important parameters can be set from the user's point of view. The wireless version of the thermostat is equipped with the MW-1 implementation module.

Function:

• room temperature control
• control according to floor temperature (when using a floor temperature sensor)
• hysteresis 0.2-5 °C
• manual program
• day/night program
• wire communication
• sensor calibration
• momentary backlighting of the display
• blocking the buttons

Equipment:

• built-in room sensor
• display backlight
• the possibility of connecting a floor temperature sensor
• batteries 2 x AA 1.5V
