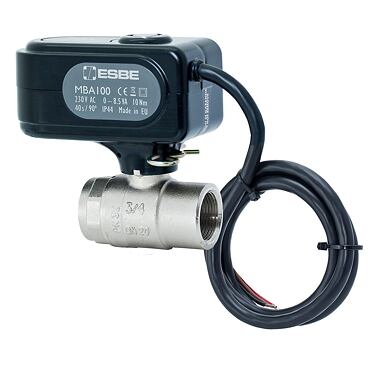

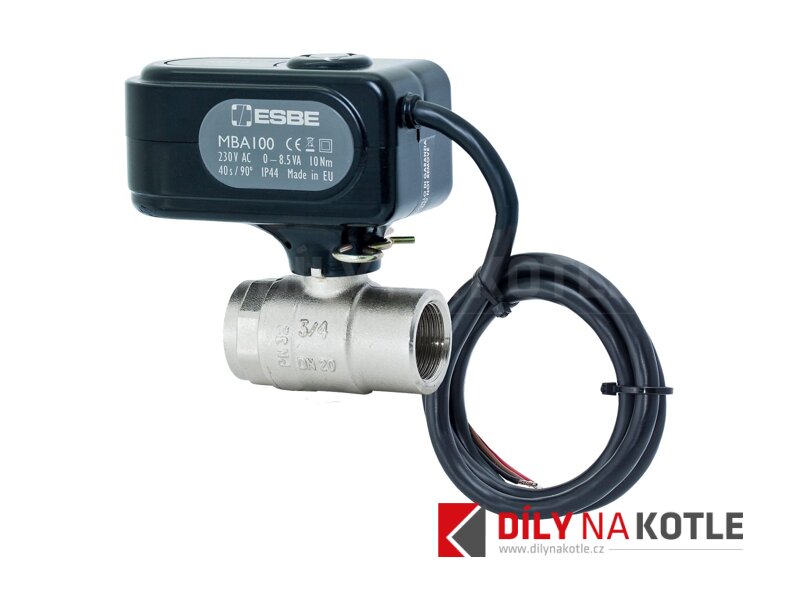

ESBE ball valve with motor drive MBA 121 - 3/4"

ESBE Ball valve with motor drive MBA 121 - 3/4" -43100100

ESBE Ball valve MBA 121 with motor drive is designed for precise control of the flow of media in heating and cooling systems. The valve is equipped with a motor drive that allows automatic regulation of the valve opening and closing. Made of corrosion-resistant material, it ensures long service life and reliability in operation.

Technical specifications

• Valve type: motorized ball valve
• Nominal diameter: DN 20 (3/4")
• Flow rate: KV 45m³/h
• Medium temperature: max. 120 °C
• Pressure: max. 32 bar
• Connection size: internal thread Rp 3/4"
• Motor power supply: 230 V AC, 0–8.5 VA
• Run time: 40 seconds per 90° movement
• Protection class: IP44

Advantages

• Automatic flow control thanks to motor drive
• High mechanical resistance and reliability
• Easy installation thanks to standard threads
• Can be used in various industrial and heating applications
• Corrosion resistance thanks to high-quality material

Function

• Precise opening and closing of the media flow
• Remote control via motor drive
• Flow control in heating and cooling systems
• Possibility of integration into automated control systems

Example of use

• Regulation of water supply to the boiler or radiators
• Control of heating circuits in homes and industry
• Automatic cooling control in air conditioning systems
• Operation in solar heating systems

- - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Order code: 43100100
