TG double thermostat into tank 0-90°C and 90-110°C

Catalogue number: 178P6MR6

In Stock total > 5 ks

32,20 €

26,83 € without VAT

-
+
producer TG

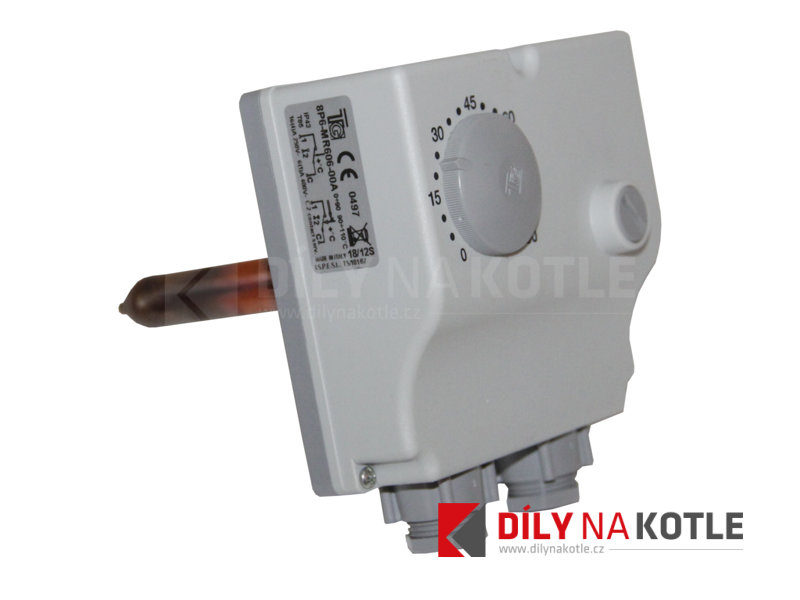

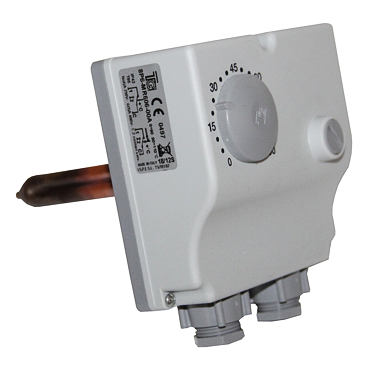

Double thermostat TG 8P6 with adjustable and emergency temperature

  • Labeled: 178P6MR6
  • Tank thermostat with Wheel with scale in range  0 - 90°C and emergency temperature 90-110°C
  • Tank lenght: 100mm
  • Connection : 1/2" external thread
  • Voltage according to EN 60730-1: 16 (4) A 250V ~ 50Hz; 2: 6(1)A 400V
  • Switching  difference range 0-90°C: 6+-2°C
  • Temperature change: 1°K/min.
  • Switching difference by emergency thermostat  90-110°C: 0-6°C
  • Switching difference by exceeding of emergency temperature: 15-25°C  - set value 0-90°C
  • Cover degree: IP43
  • Maximal thermostat temperature: 85°C
  • Measurement range: 0-90°C
  • Output: switching off or on
  • Colour: grey
  • Example usage: switching on PUMPS, BOILERS

Need advice?

If you do not know how to choose, or you need to verify the compatibility of the part with your boiler, contact us.
