HONEYWELL thermostatic head white THERA 4

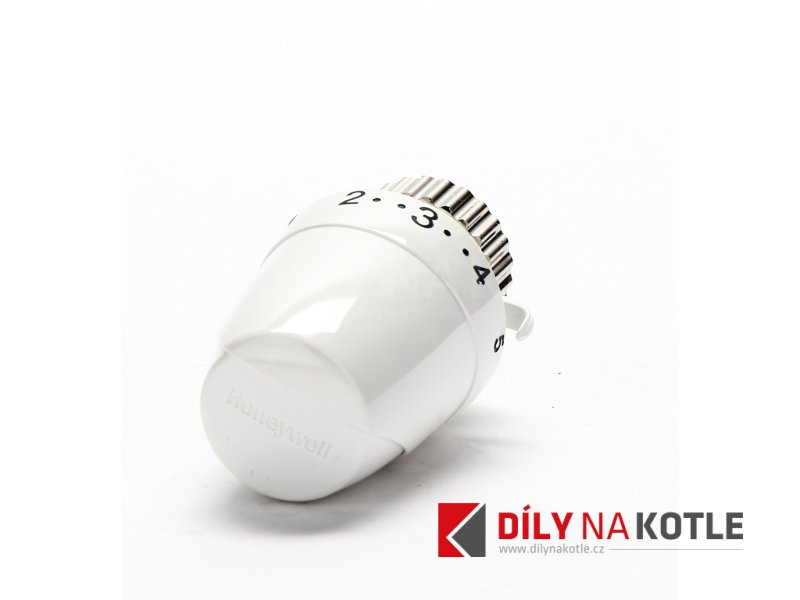

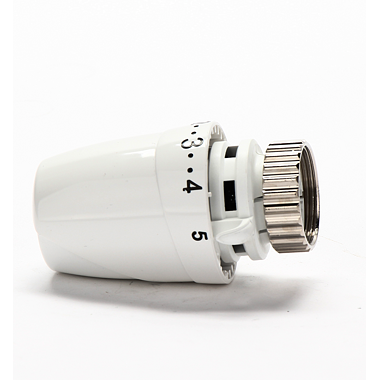

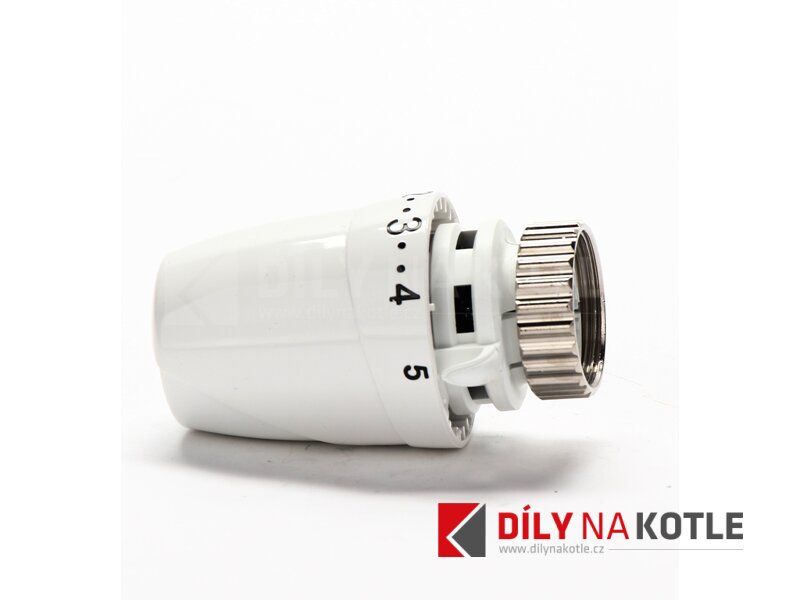

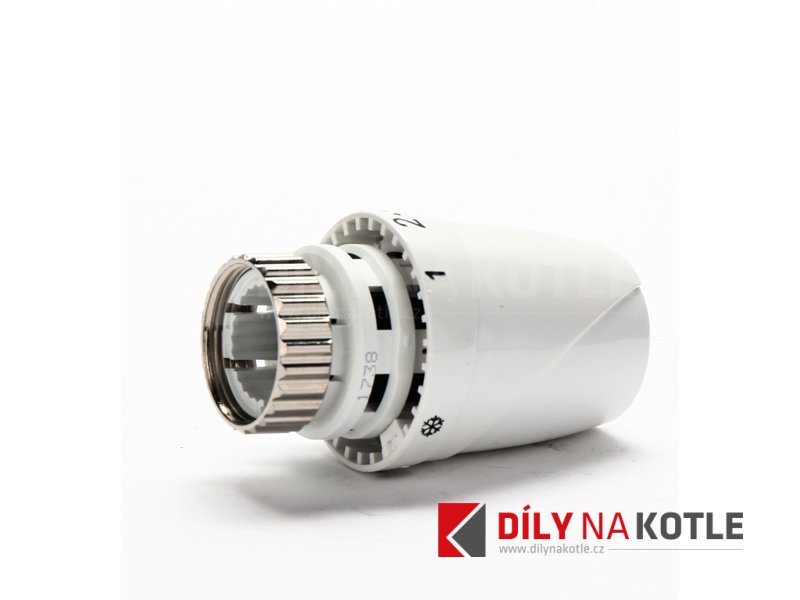

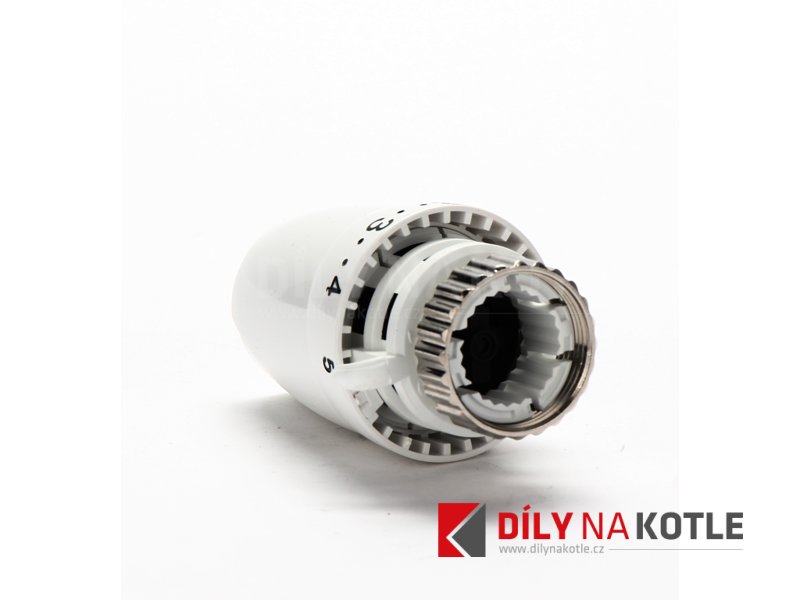

THERA 4 thermostatic head white

Thera-4 Design thermostatic heads are installed on valve bodies (TRV). The thermostatic head in combination with TRV regulates the room temperature by regulating the flow of heating water to the heating system.
TRVs are installed in hot water heating systems at the inlet or (less often) at the outlet connection of radiators or other radiators.
Thermostatic heads of this type with M30 × 1.5 connection thread are suitable for all TRV bodies and radiator inlets with M30 × 1.5 connection thread and 11.5 mm control mandrel.
The Danfoss TRV-connected heads can be used on TRV bodies and valve inserts with a Danfoss (RA) -compatible connection.
Product certification: The heads comply with European standards EN215

TECHNICAL DATA:
Set value blocking: yes
Control range limitation: yes
Supplied with built-in liquid sensor
Modern design
Compact design
Simple range limitation
Sensor element: internal
Closure size: 11.5mm
Temperature sensor: liquid
Design: YES

Connection type: M30 x 1.5
White color
Temperature setting range: 6 ... 28C
Zero position: no
Certification according to EN215: yes
TELL "A" certification: yes
