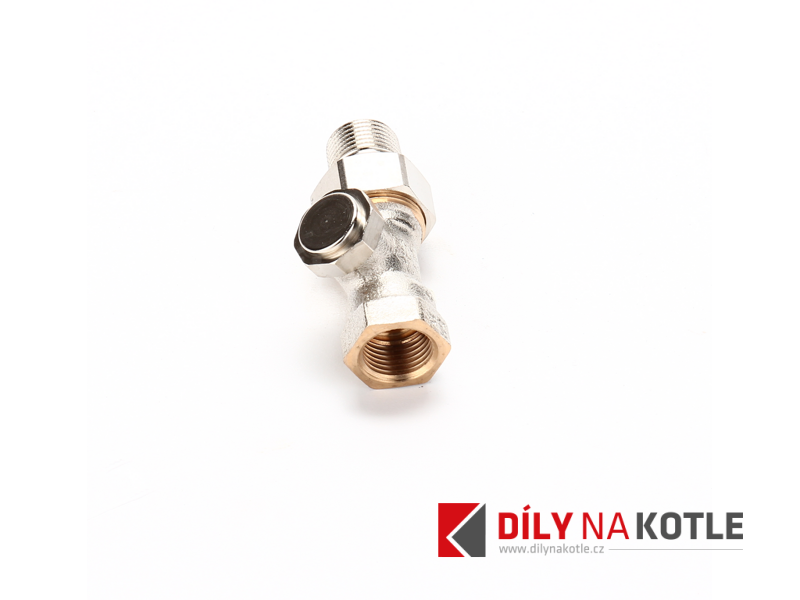

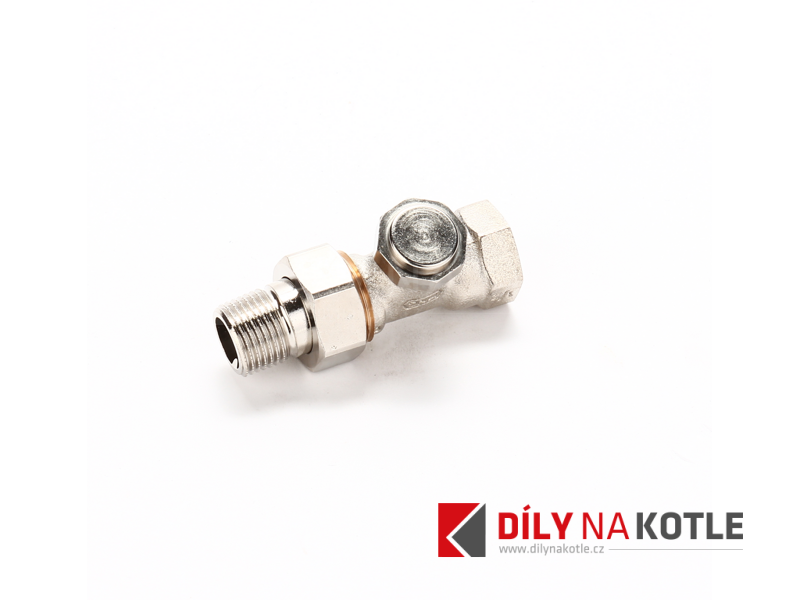

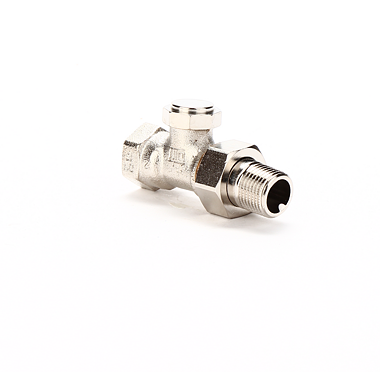

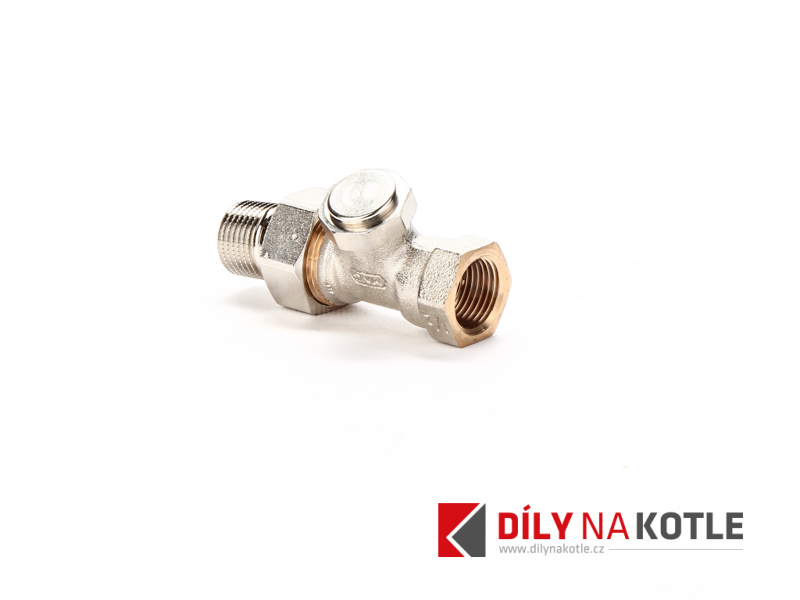

HONEYWELL straight fitting 1/2

HONEYWELL Straight fitting 1/2

Verafix-E are regulating and closing screw fittings for classic radiators. They are used for two-pipe or one-pipe systems to regulate or close the flow of heating water through radiators. Individual radiators can be drained or filled during system operation using a special adapter (see accessories). For heating systems.
Materials: fitting body made of matt nickel-plated brass, regulating cone made of brass, sealing O-rings made of EPDM and NBR, nut for connection to the radiator made of nickel-plated brass, protective cap made of nickel-plated brass with NBR seal.

• switching off option: yes
• preset: yes
• allows filling/draining: yes
• allows measurement: no
• valve location: on the return pipe
• medium: water or water-glycol
• medium temperature: 2...130C
• nominal pressure: PN10
• Installation on the supply pipe is also possible, the drain and fill function is not supported!
• verafix-E with nickel-plated screw connection
• Body shape: straight according to DIN
• DN: 15mm
• Kvs value: 1.45
• connection - pipe: 1/2"
• connection: internal thread

Order code: V2420D0015
