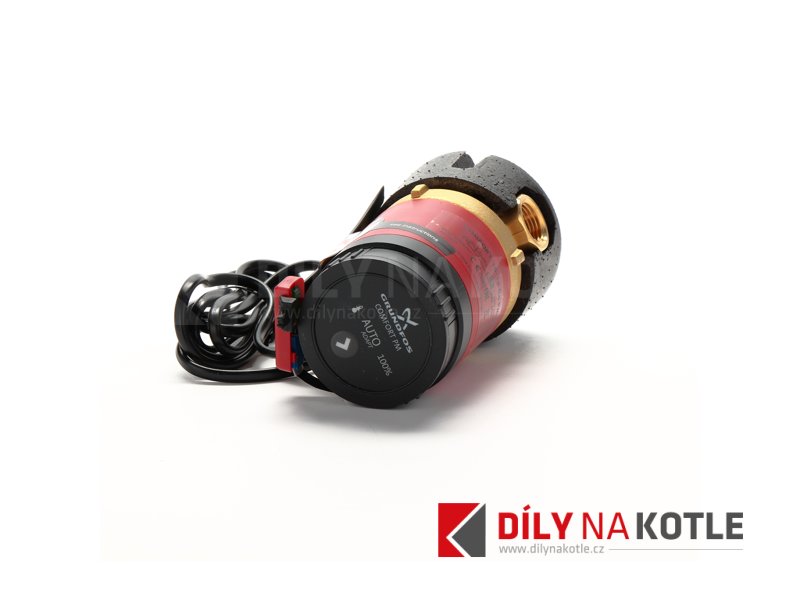

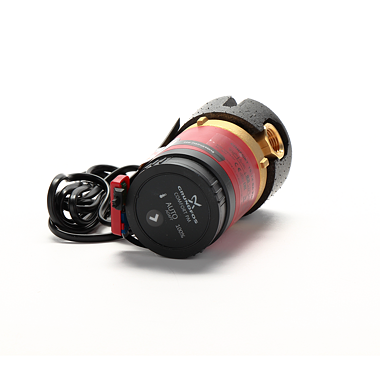

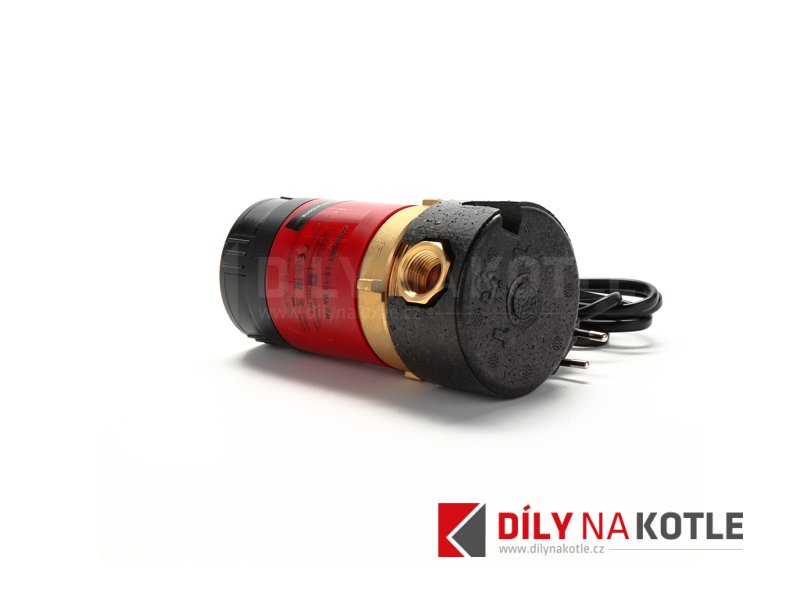

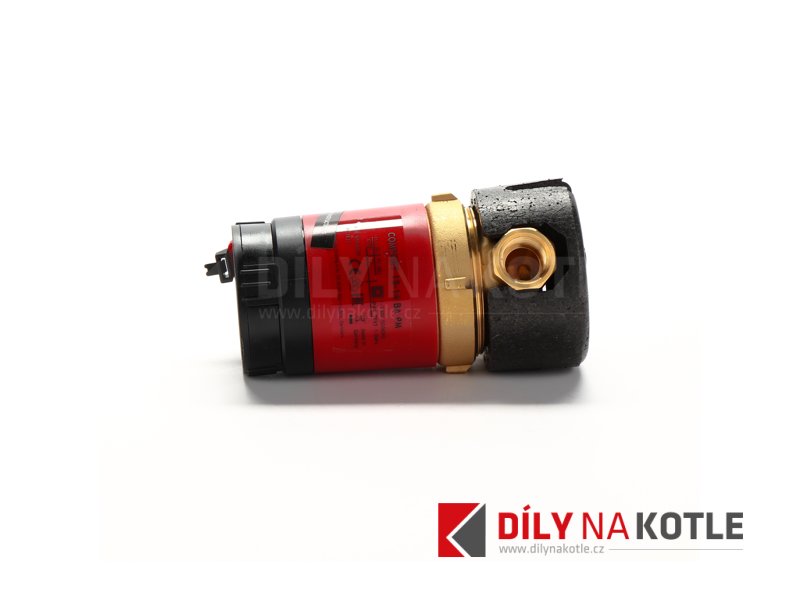

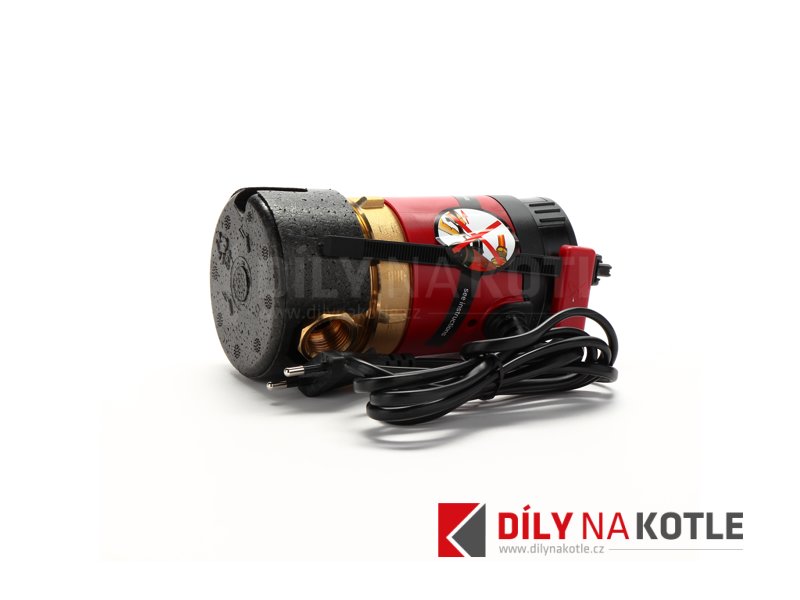

GRUNDFOS circulation pump UP 15-14BA PM

GRUNDFOS Circulation pump UP 15-14BA PM

The Grundfos Comfort series circulation pump is suitable for use especially in family houses or apartment units. The pump ensures immediate supply of hot water without the need to "drain" a large amount of cold water from the pipes. This contributes to great comfort for the user.

Operating modes:

• AUTOADAPT (factory setting). For a more detailed description of this function, see below.
• temperature control
• continuous operation

Description of the AUTOADAPT function:

The Autoadapt function works on the principle of continuous detection of time periods in which hot water is drawn in a given household or house. According to this information, the electronics start the pump only when there is a probability of hot water being drawn. It stores this data in its calendar, which it continuously updates and thus adapts the pump start times. The saved records for the last two weeks are used. The calendar also distinguishes between working days and weekends. With this method of regulation , the savings in electricity are very high, especially compared to older types of circulation pumps.

The Autoadapt function ensures disinfection of the system (destruction of Legionella bacteria) once a week by switching on at a time when the heat source significantly increases the water temperature.

Example

Features and benefits:

• high quality material
• easy maintenance and possible replacement of the motor - can be separated from the pump body
• stainless steel impeller
• approved for operation with drinking water
• simple power connection using the ALPHA connector
• one-button control
• pump component temperature sensor
• dry running detection

Order code: 97916757
