FANTINI COSMI thermostat attached C01A

Catalogue number: C01A

In Stock total 4 pcs

17,95 €

14,96 € without VAT

-
+
producer Fantini Cosmi

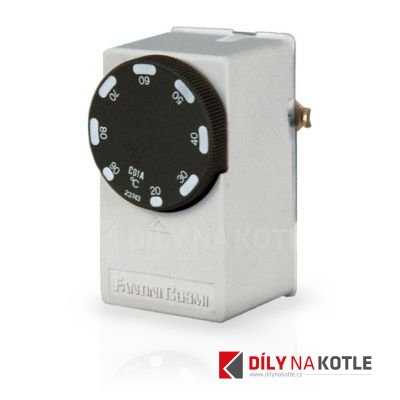

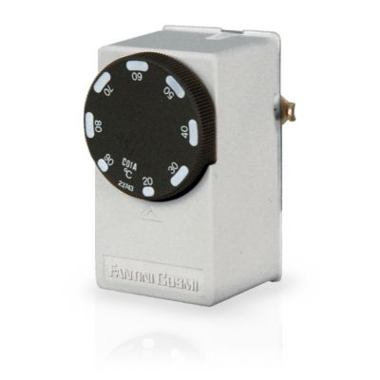

Contact thermostat FANTINI COSMI C01A

Contact thermostat with wheel with scale in the range from 20 - 90 ° C installed
on the pipe.

  • Easy attachment to the pipe by means of a spring. Easy operation
    with the help of a large hand dial. The thermostat can be locked at the set
    temperature.
  • Microswitch with AG CDO gold strap
  • Voltage according to EN 60730-1: 15 (6) A 250V ~ 50Hz
  • Application example: PUMP switching
  • Rated insulation voltage Ui 380V ~
  • Switching current Ith 15A
  • Operating voltage: 220V-250V ~ 380V ~
  • Resistive load C-12 - 15A 10A
  • Measuring range: 20-90 ° C
