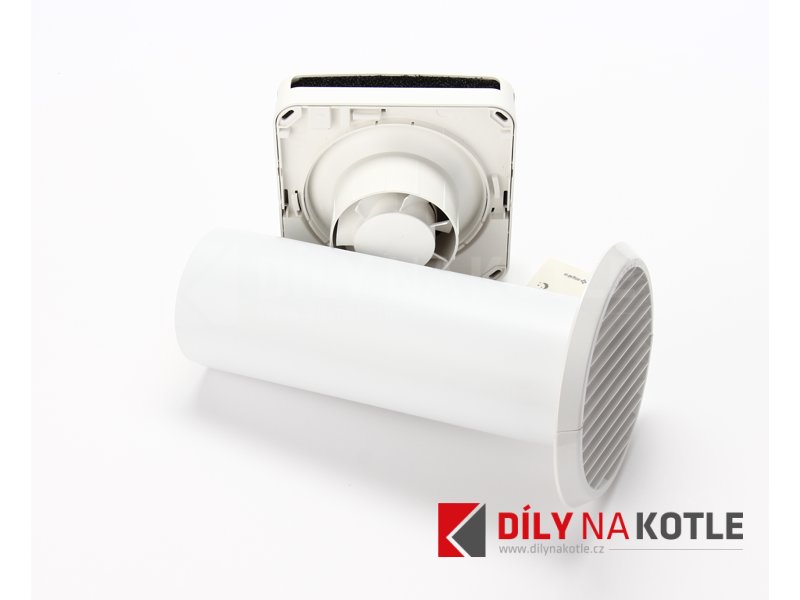

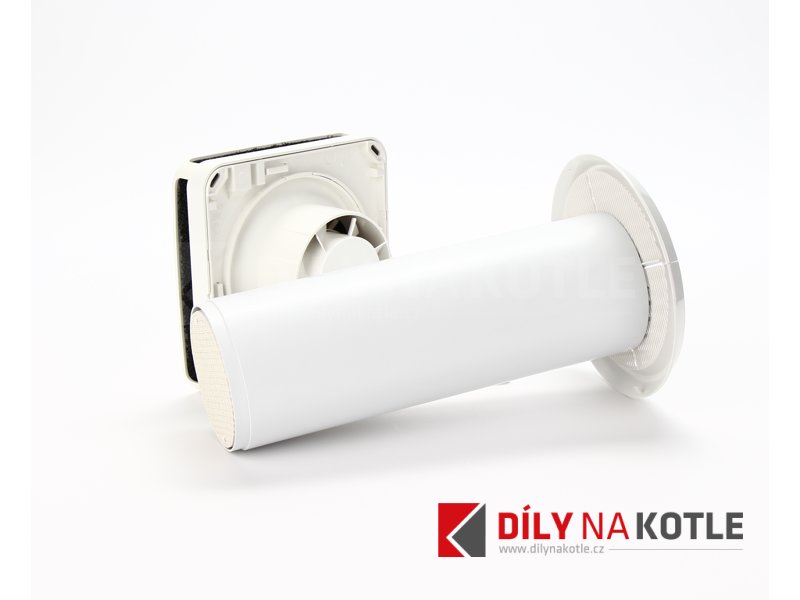

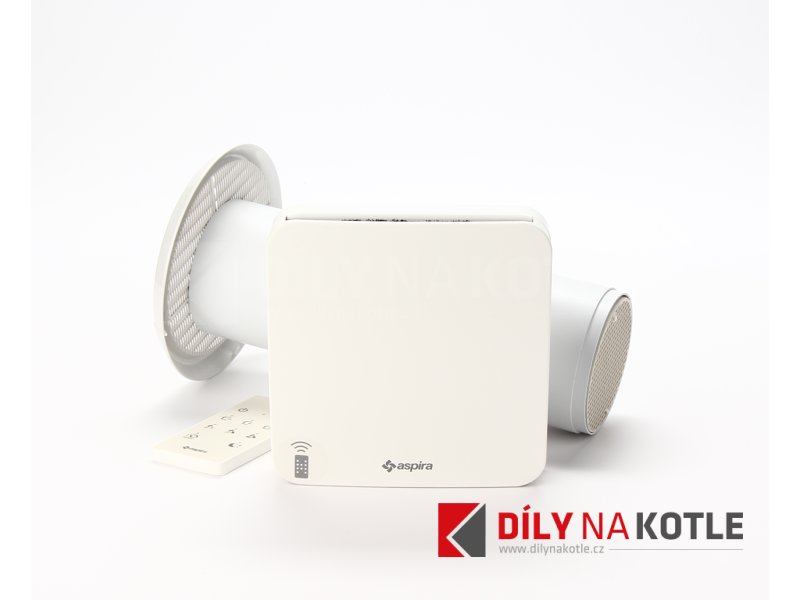

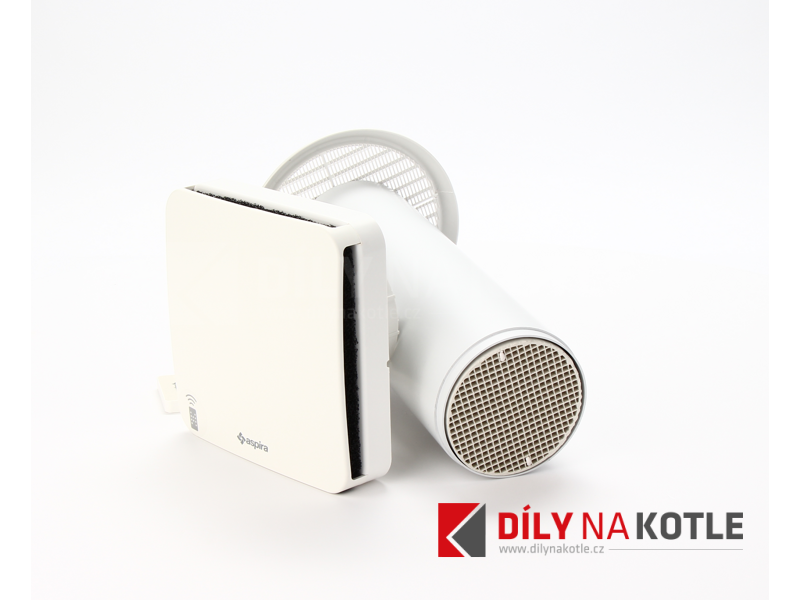

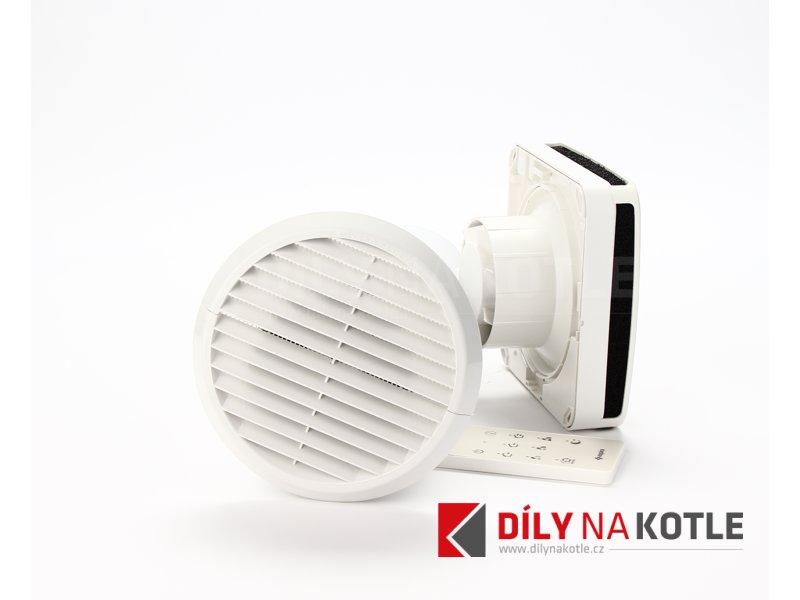

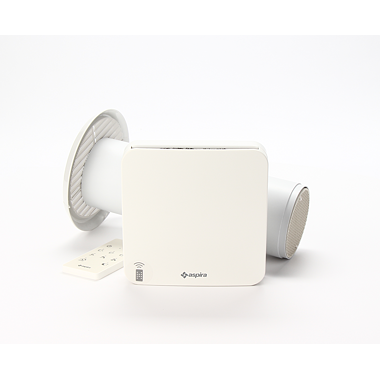

FANTINI COSMI RF ECOCOMFORT 100 heat recovery unit

FANTINI COSMI Heat recovery unit RF ECOCOMFORT 100

The high efficiency of the recuperation room unit is guaranteed thanks to the ceramic heat exchanger, which transfers the heat from the supply/exhaust air flowing through the exchanger to the air being sucked in. The Aspirvelo ventilation unit is equipped with a brushless DC motor, which, thanks to its reverse function, guarantees correct air exchange in the room. The Aspirvelo Air Ecocomfort is equipped with a G3 filter, easy access with the possibility of replacement. The Aspirvelo Air Ecocomfort can be controlled using a control unit that allows the user to choose between automatic or extraction mode or only supply - exhaust air from the room. The control unit allows you to adjust the fan speed depending on the temperature difference between the indoor and outdoor temperature. The control unit is suitable for regulating up to 4 fans simultaneously.

CHARACTERISTICS:

• body made of antistatic ABS plastic
• F-class engine
• maximum ambient temperature 45°C
• compact dimensions for easy installation
• the control unit controls up to 4 fans with a heat recovery exchanger
• Telescopic body for different wall thicknesses
• external grille for outdoor use
• G3 filterØ 160 and 100 mm
• wall version
• low noise level
• high efficiency of the ceramic exchanger > 90%
• Up to 4 units can be controlled with one thermostat
• easy installation of outdoor grille
• Telescopic adapter for different wall thicknesses

TECHNICAL DATA:

• minimum speed: 12 m3/hour.
• maximum speed: 25 m3/hour.
• power supply: 230V - 50Hz
• pipe diameter: 100 mm

Order code: AP19987
