CALEFFI draft regulator 30 - 90 °C

Catalogue number: 13529150

In Stock total > 5 ks

34,42 €

28,69 € without VAT

-
+
producer Caleffi

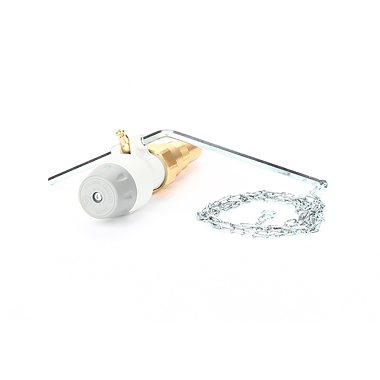

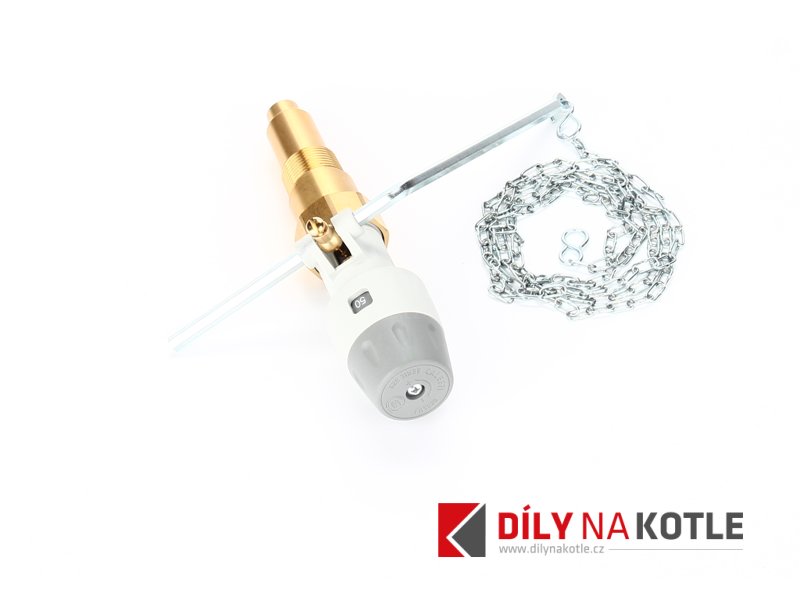

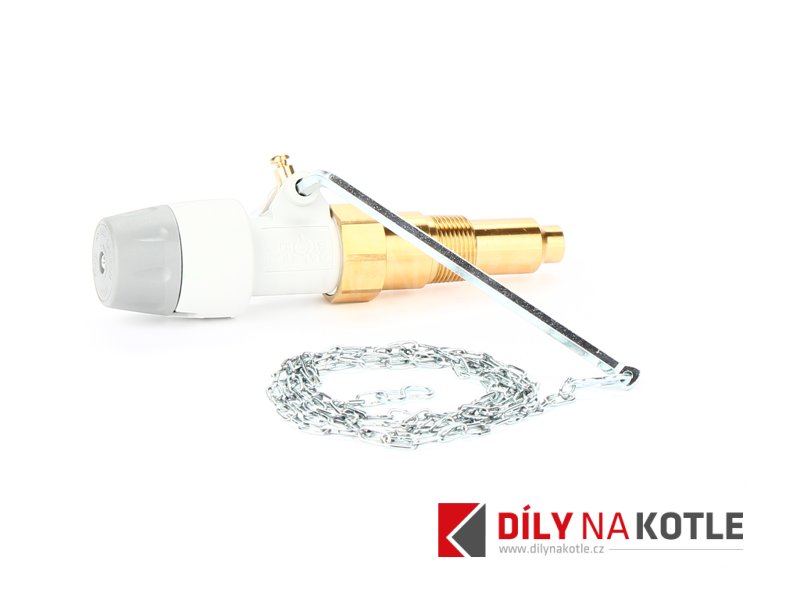

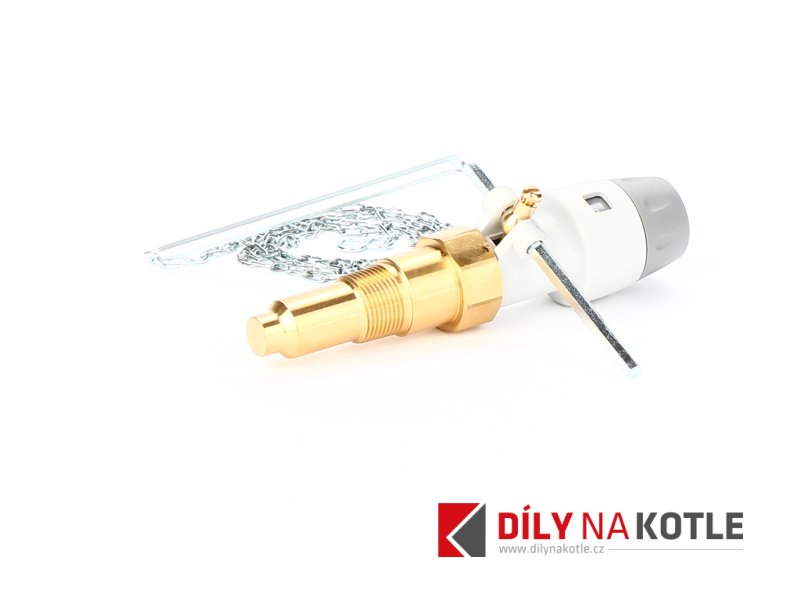

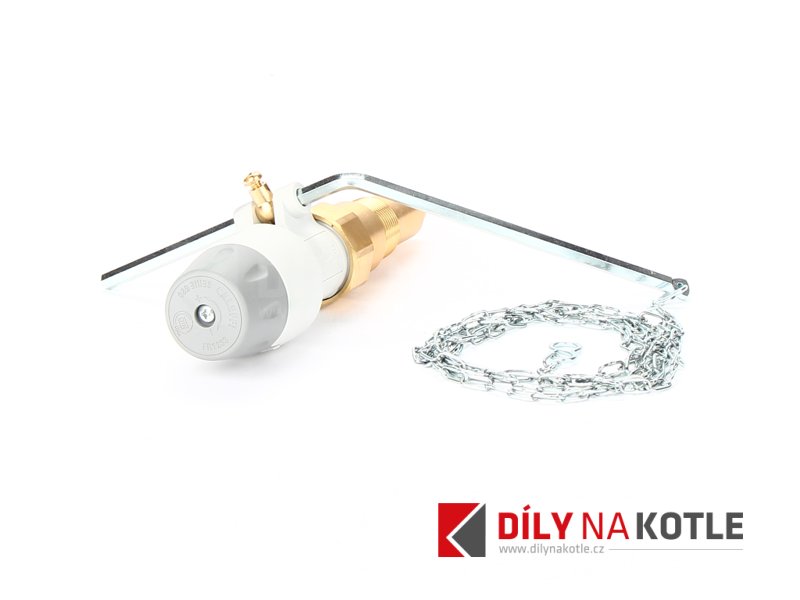

CALEFFI draft regulator 30 - 90 °C

  • CALEFFI draft regulator for solid fuel boilers
  • The controller is installed next to solid fuel boilers with a heat sensor immersed in the liquid, it regulates the flow rate of air, and thus enables perfect fuel combustion.
  • The controller can be installed in a horizontal or vertical position.
  • Technical parameters:
  • Sensor mounting : brass EN 12164
  • Spring: stainless steel
  • Maximum operating temperature: 120 ° C
  • Setting range: 30 - 90 ° C
  • maximum operating pressure: 10 bar
  • Maximum chain load: 10 N
  • Well length: 58 mm
  • Connection: 3/4 "male thread
  • Chain length: 1200 mm
  • Suitable for power control of solid fuel boilers DAKON, VIADRUS, ATTACK
