The tap works on the principle of water flow through the body of this valve. When the temperature drops below 3 ° C, the cartridge opens automatically and water begins to flow through the non-freezing cartridge, thus constantly water flowing and reducing the possibility of the tap freezing.

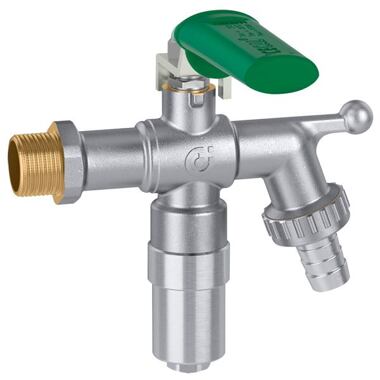

Nickel-plated body of the cock

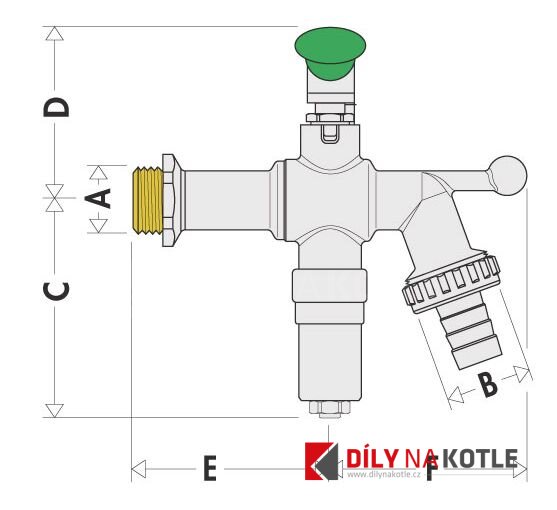

Dimensions: A - 1/2 "| B - 3/4" | C - 77 mm | D - 55.5 mm | E - 61 mm F - 65 mm
Anti-freeze function activated: temperature <+ 3 ° C
Hose connection: diameter 15 mm
Connection: 1/2 "male thread
Maximum and minimum ambient temperature: -30 ° C to + 90 ° C
Maximum working pressure: 10 bar
Suitable for operations where the temperature is above 0 ° C, the lower the temperature, the more frequent the passage through the cartridge.
If you do not know how to choose, or you need to verify the compatibility of the part with your boiler, contact us.
