How to choose a boiler manostat?
The manostat in your boiler serves as boiler protection device . The manostat is connected to the boiler fan and ensures that the burner does not ignite , if the fan does not generate the necessary pressure, which is set on the manostat.
Not sure how to choose the right boiler manostat?
Here is a short guide and description of how to determine the correct type of HONEYWELL ,SIT and DNK manostat .

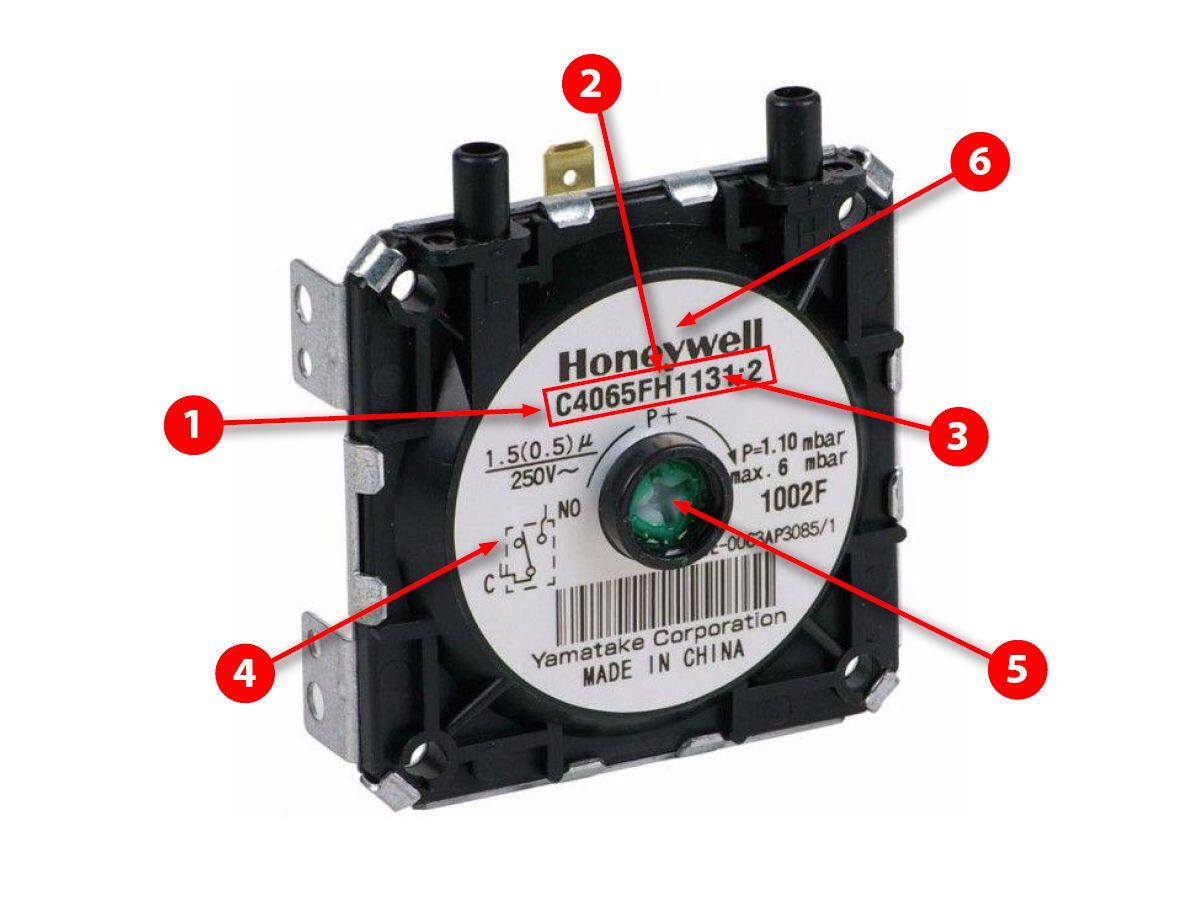

HONEYWELL manostat label description
The manostat manufacturer Honeywell indicates the exact type of manostat on the production label. Here is an example of how to correctly determine the type of manostat.
- C - air pressure manostat
4 - the SPST switching contact switches on the pressure difference increase
6 - SPDT switch - A* / F - standard setting accuracy, ambient temperature - 40-90 °C
AH* / FH - increased setting accuracy, ambient temperature - 40-90 °C - 1131 - manufacturing number of manostat
- circuit diagram of the microswitch
- regulation screw - pressure can be regulated for model C6065A1028
- manufacturer's logo
Send us a photo of the manostat to e-mail info@dilynakotle.cz and we will send you the right type of manostat.

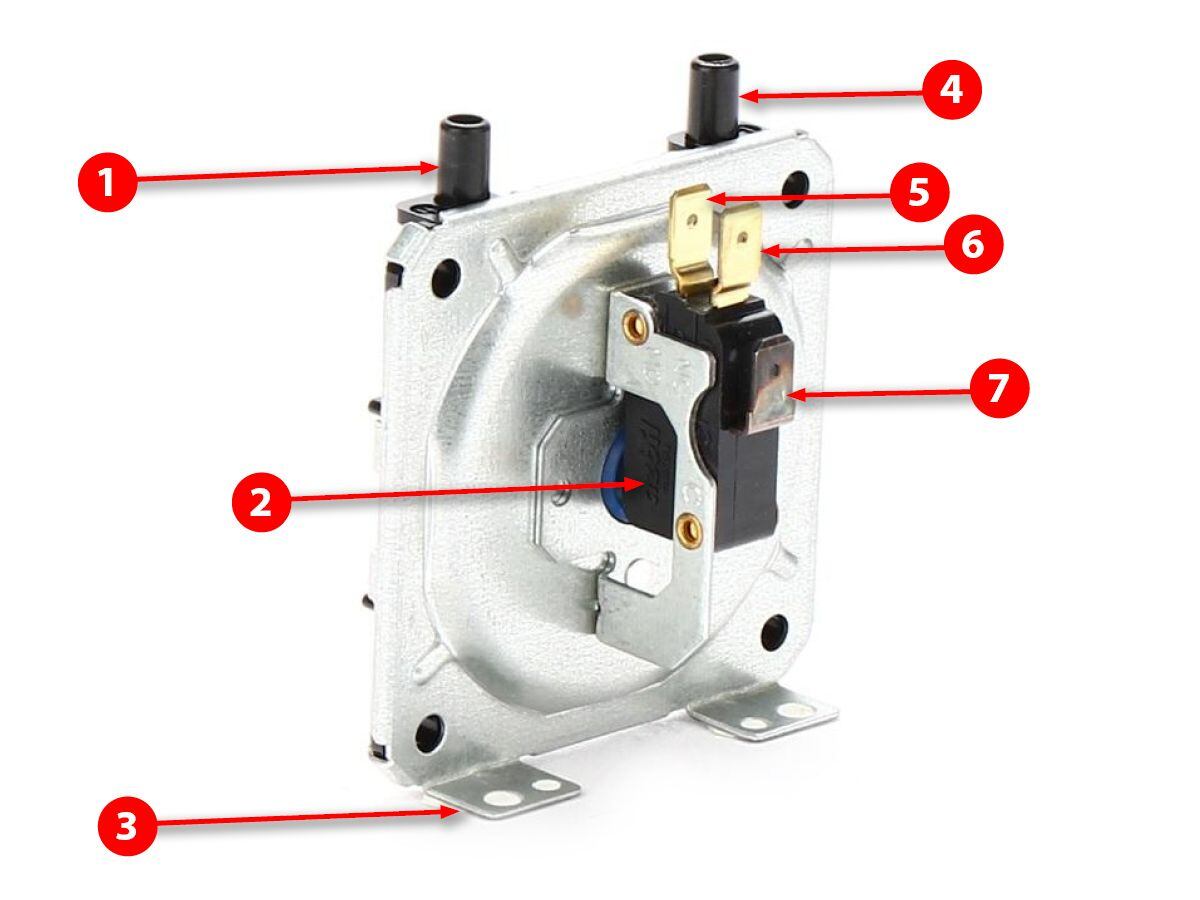

Description of the back of the HONEYWELL manostat
- Overpressure (+) marked H (High)
- Micro switch
- Fixing manostat
- Vacuum (-) marked L (Low)
- Normally open contact NO
- Normally closed NC contact
- Common contact
Description of the HUBA Control manostat
The manostat manufacturer Honeywell indicates the exact type of manostat on the production label. Here is an example of how to correctly determine the type of manostat.
- Normally open contact NO
- Common contact
- Normally closed NC contact
- Vacuum (-) marked L (Low)
- Front coat (+) marked H (High)
- Manostat manufacturer type
- Manostat production date and customer code

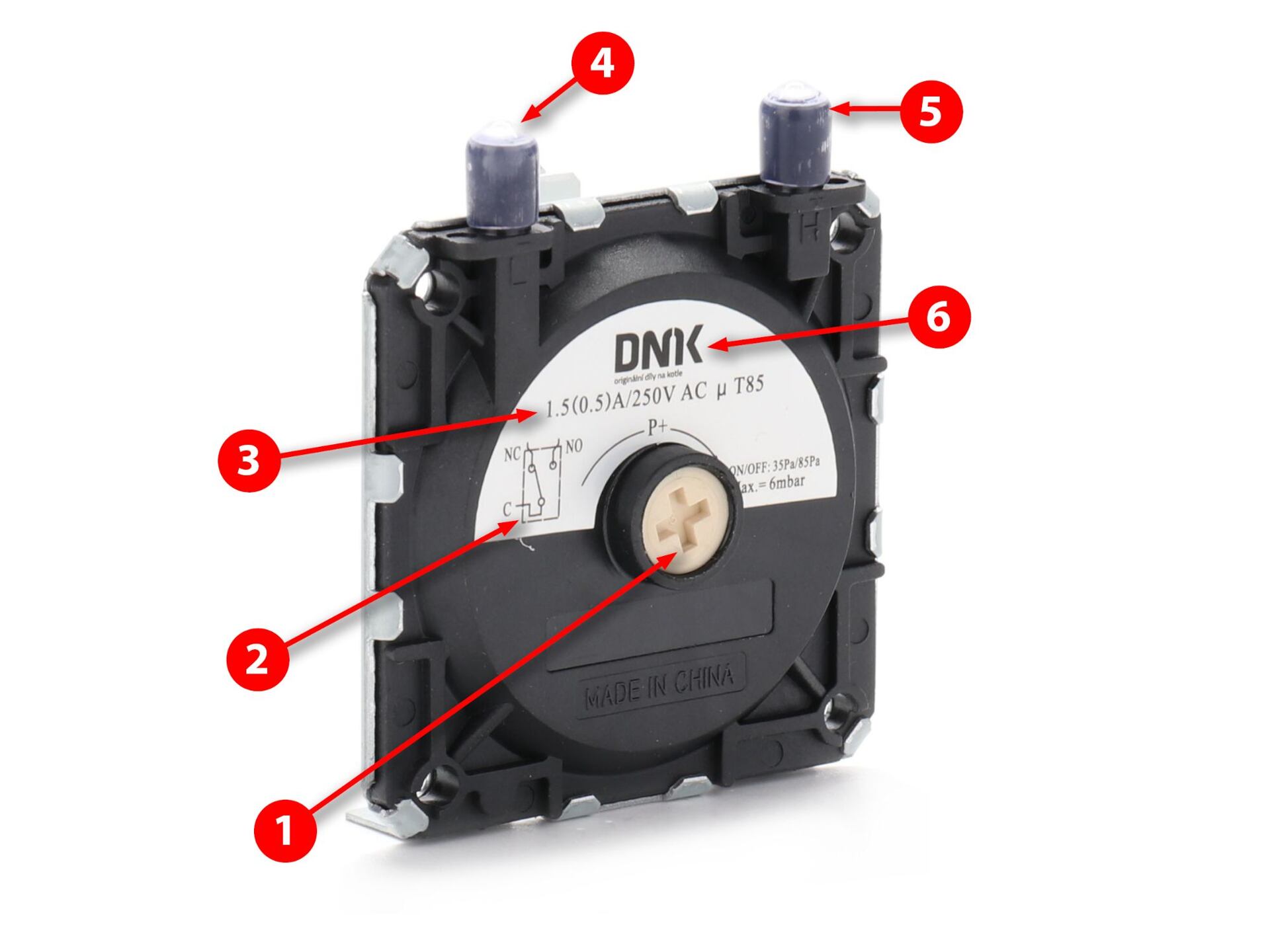

Description of the DNK manostat label
Label description of the adjustable manostat of our DÍLYNAKOTLE brand. Can be commonly used as a replacement for Honeywell manostats.
- Regulation screw - the pressure can be regulated 35-85 Pa
- Microswitch wiring diagram
- The maximum current and voltage of the microswitch
- Vacuum (-) marked L (Low)
- Precoat (+) marked H (High)
- Manufacturer's logo
Send us a photo of the manostat to e-mail info@dilynakotle.cz and we will send you the right type of manostat.

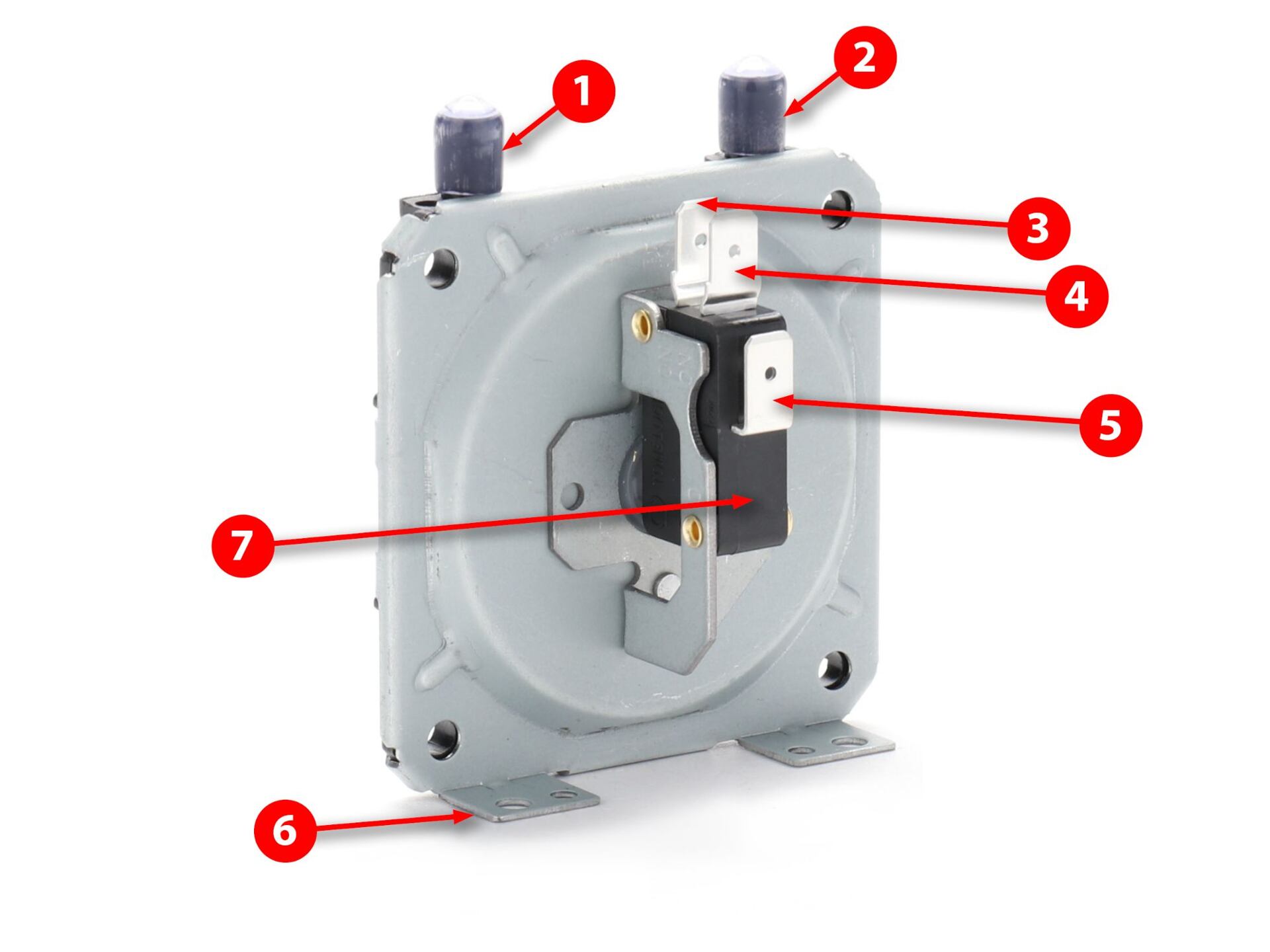

Description of the DNK manostat
Description of the back of the manostat.
- Normally open contact NO
- Common contact
- Normally closed NC contact
- Vacuum (-) marked L (Low)
- Front coat (+) marked H (High)
- Manostat manufacturer type
- Manostat production date and customer code
