TG thermostat double 30-120 | 0-60 °C

Catalogue number: 178P1BR606

In Stock total > 5 ks

32,84 €

27,37 € without VAT

-
+
producer TG

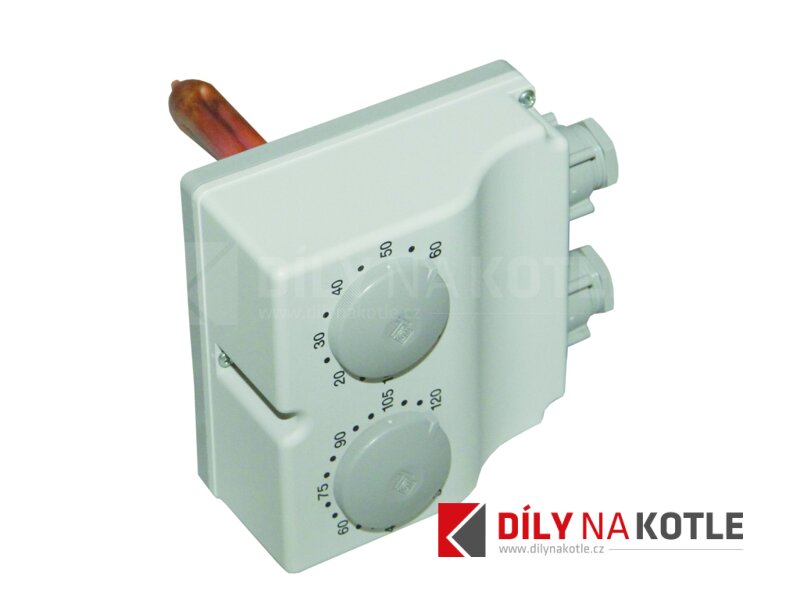

TG thermostat double 30-120 | 0-60 °C

  • The double well thermostat with a scale in the range from 0 - 60 °C and 30-120 °C can be installed in a well with an internal 1/2 "thread
  • The thermostat is equipped with a well with an external 1/2 "thread
  • Easy thermostat operation thanks to the large hand dial
  • Voltage according to EN 60730-1: 16 (4) A 250V ~ 50Hz ; 2: 6 (1) A 400V
  • Switching difference: 6 + -2K
  • Temperature change: 1 ° K / min.
  • Degree of protection: IP43
  • Maximum thermostat temperature: 80 °C
  • Maximum sensor temperature in the well: 125 °C
  • Measuring range: 0-60 ° C; 30-120 °C
  • Output: make or break contact
  • Well dimensions: 15x16x100mm
  • Color: gray
  • Application example: PUMP switching; BOILERS + TEMPERATURE MONITORING
