SANIBROY transfer station SFA SANICONDENS BEST

SANIBROY transfer station SFA SANICONDENS BEST

• SANICONDENS Best is a pumping device designed for drainage and neutralization of condensate from condensing boilers (gas or fuel oil) with a higher output (25-200kW).
• The variability of the pump location is given by the four possibilities of connecting the condensate supply and possible installation on the floor or on the wall (mounting holes are on both sides).
• SANICONDENS Best is equipped with an integrated neutralization unit (change of neutralization charge once a year) for acid condensates, which must be neutralized before discharge into the sewer network.
• TECHNICAL DATA:

• European standard	CE
  Maximum pumping height (m)	4.5
  Maximum pumping distance (m)	50
  Maximum inlet water temperature, in intervals (max. 5 min) (° C)	80
  Voltage (V / Hz)	220-240 / 50
  Tank capacity (l)	2.1
  Engine speed (rpm)	2800
  Power consumption (W)	60
  Waste pressure pipe diameter (mm)	8
  Flow (l / h)	342
  Dimensions lxdxh (mm)	301 x 190 x 254
  Inclination of horizontal connecting pipe%	1

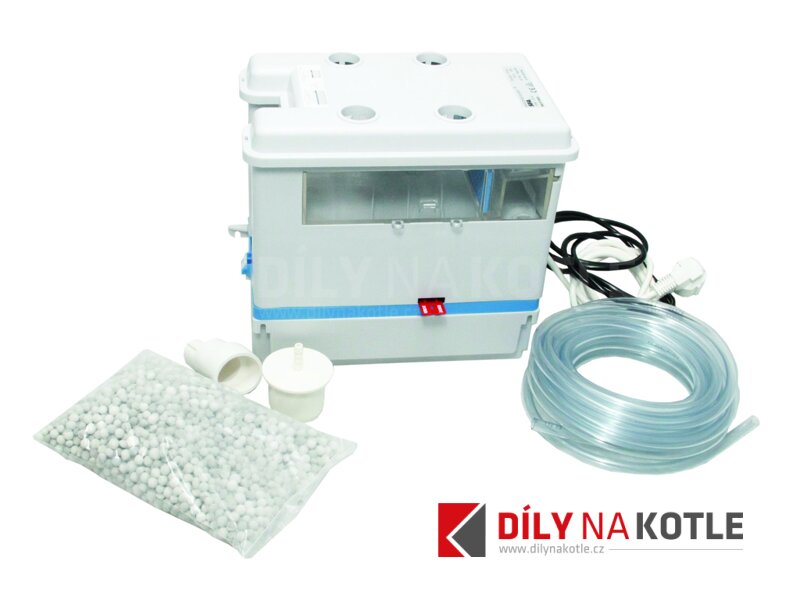

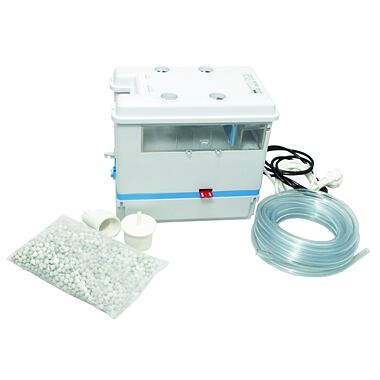

• Condensate pump with neutralization box SANICONDENS BEST
