CALEFFI sludge trap 3/4" with DIRTMAG magnet

Catalogue number: 15545305

In Stock total > 5 ks

105,70 €

88,08 € without VAT

producer Caleffi

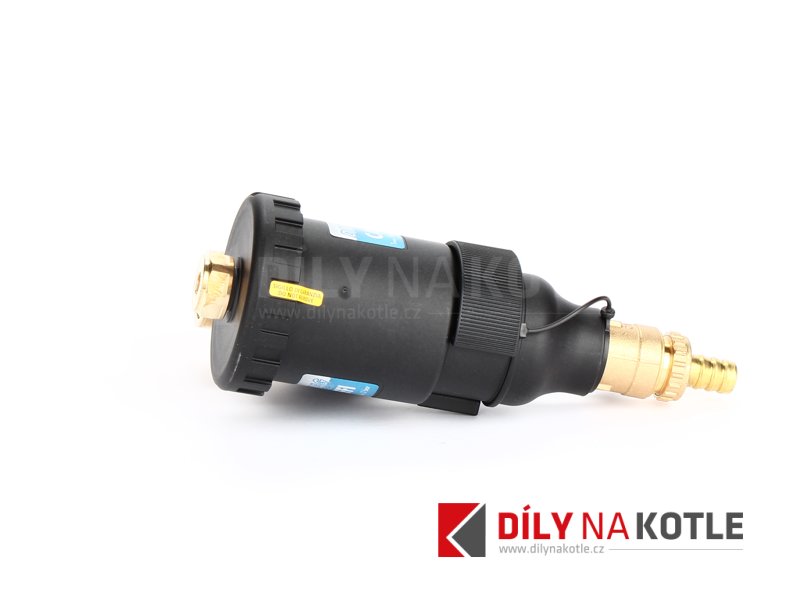

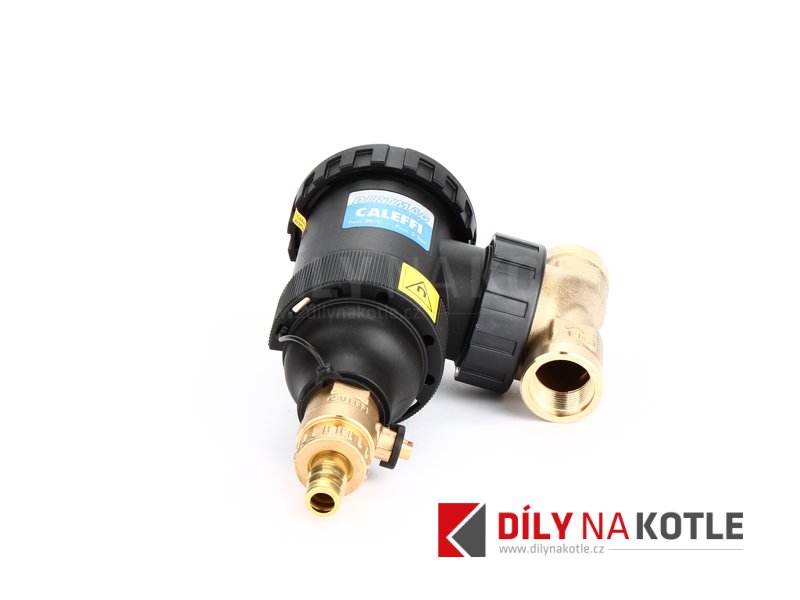

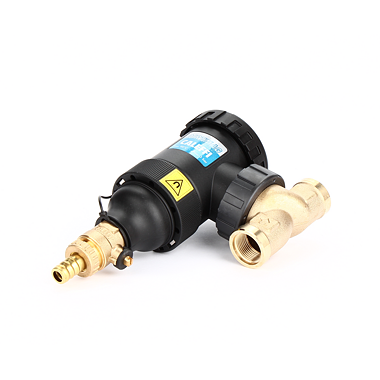

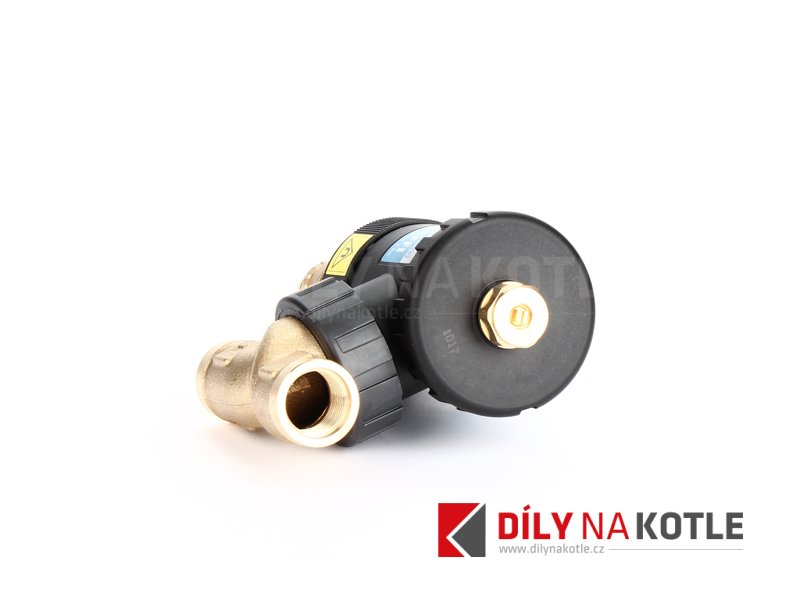

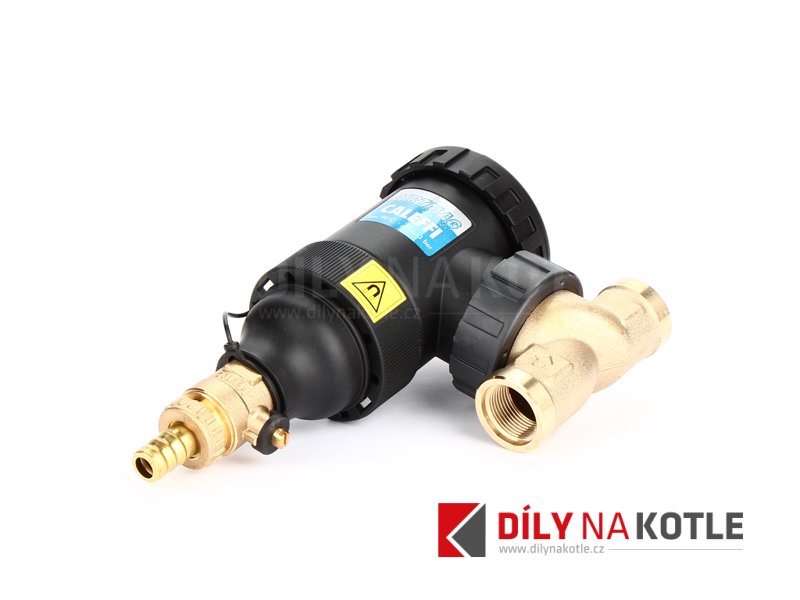

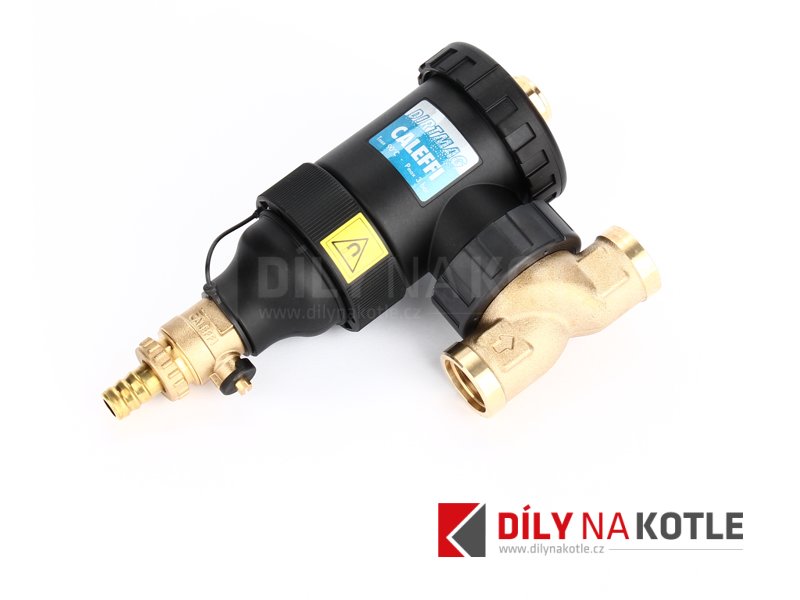

CALEFFI sludge trap 3/4" with DIRTMAG magnet

  • It separates impurities formed mainly by sand and rust particles, which circulate in heating systems. impurities are collected in a large sludge chamber, which requires a low frequency of cleaning. The chamber can be easily shut down and cleaned even during operation of the heating system.
  • The separator is also equipped with a removable magnetic ring for the separation of ferrous impurities.
  • The separator is made of a composite material specially designed for use in many operations.
  • It can be installed vertically or horizontally
  • Technical specifications:
  • Operating temperature: 0 - 90 ° C
  • Maximum operating pressure: 3 bar
  • Connection: 3/4" female thread
  • Liquids: drinking water + stainless mixtures in heating systems
  • Suitable for heating systems in combination with solid fuel or gas boilers

Need advice?

If you do not know how to choose, or you need to verify the compatibility of the part with your boiler, contact us.
